Hot Sealing Vacuum Packing Machine Floor Standing Upper And Down

Hot Sealing Vacuum Packing Machine Floor Standing Upper And Down
Hot Sealing Vacuum Packing Machine Floor Standing Upper And Down

Large Image :  Hot Sealing Vacuum Packing Machine Floor Standing Upper And Down

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: VS-600WB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, with foam
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: Hot Sealing External Vacuum Packing Machine Power Supply: 110V/220V,50/60Hz
Air Pressure: 5-8kg Power: 1.5KW
Application: Electronic Products,Food,Commodity,Medical,Chemical,Machinery & Hardware Condition: New
Certification: CE
High Light:

commercial vacuum packaging machine


chamber vacuum sealer

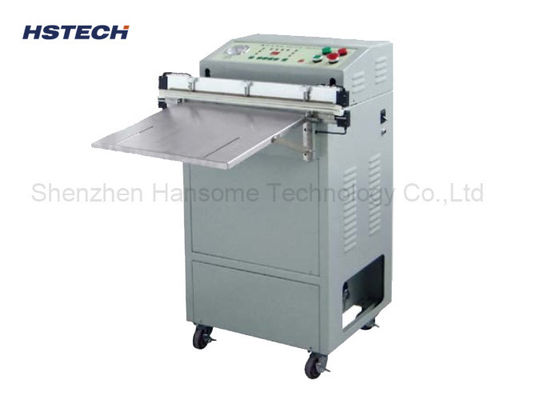

Floor Standing Upper and Down Hot Sealing Vacuum Packing Machine




This external vacuum packing machine using upper and down hot sealing packing method, the whole machine is made of painted shell, also can be customized using stainless steel. The platform is adjustable to choose the right height you need, slience wheel for the machine movement.




1, Compare with the standard external packing machine, this unit machine using hot sealing type, suitable for high requirement and thicker bags sealing, like 4 level bags, folding pocket, organ bag, and foil paper.

2, With air pressure supply, also we have another option,can customized the machine to use a internal air compressor, then don't need external air pressure.

3 This unit machine equipped with the self-detection system, the machine will alarm automatically when power on, power off or during the operation.

4, It's a standard vacuum packer, max sealing size is 600mm, working platform size is 400x450mm, especially suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.




Model VS-600WB
Packing capacity 3-10 bags/min( based on product size)
Sealing size W600*W5~10mm(sealing line width, customized)
Max packing size L(unlimited)*W600*H(unlimited)
Machine size 670*460*1050mm
Platform size 400*450mm(can customized)
Power supply 110V/220V, 50/60Hz
Power 1.5KW
Air pressure 5-8kg(also can customized to no air pressure, make internal air compressor)
Ultimate vacuum -o.1Mpa
Weight 85kg
