| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | VS-450TA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case, with foam |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | External Desktop Vacuum Packer | Condition: | New |
|---|---|---|---|
| Weight: | 45KG | Voltage: | 110-220V/50-60HZ |
| Automatic Grade: | Automatic,Semi-Automatic | Driven Type: | Electric And Pneumatic |
| High Light: | industrial vacuum sealer machine,chamber vacuum sealer |
||

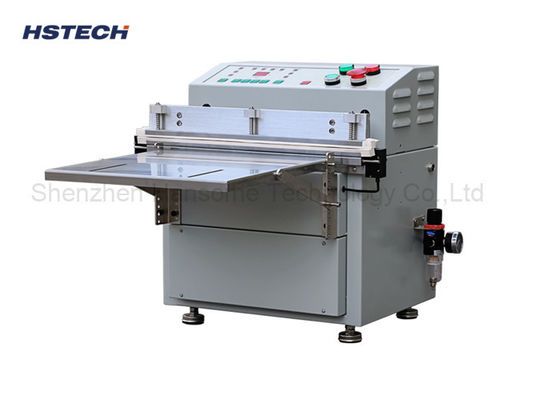

Economic Desktop External Vacuum Packing / Sealing Machine for PCB Package
Introduction
This vacuum packing machine called desktop external vacuum packing machine, made of painted shell, or customized stainless steel, suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.
Control system
This machine use our self developing micro control system, this system with accurate controling, Strong anti-interference ability, and stable, all the parameter can be setted at the panel, don't need operation steps.
Automatic / Manual function
1, Steps two feet to finish automatic packing, set the parameter at the control panel first, step one feet to make sure if the packing bags are flat, step the second feet to finish the whole packing process, packing speed improve fast.
2, Manual packing steps 3 feet to finish the packing, first step one feet to make sure if the bags are flat, ready for packing, step second feet to vacuuming, visual check if the vacuum reach the requirement, step the third feet to run the order, automatic finish packing.
Specification
| Model | VS-450TA | VS-600TA |
| Packing capacity | 3~10(based on product size) | 3~10(based on product size) |
| Max sealing size | W450*W5~10mm(sealing line width, customized) | W600*W5~10mm(sealing line width, customized) |
| Max packing size | L(unlimited)*W450*H(unlimited) | L(unlimited)*W600*H(unlimited) |
| Platform size | 350x300(customized) | 350x300(customized) |
| Lilmited air pressure | -0.1Mpa | -0.1Mpa |
| External air pressure | 5-8kg | 5-8kg |
| Power supply | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz |
| Power | 1.5KW | 1.75KW |
| Machine size | 520×400×500mm | 670×400×500mm |
| Weight | 45kg | 60kg |
