H04 Pick Nozzle R19-150-155 Pick And Place 1.0 Mm To 15.00 Mm Tin Size

H04 Pick Nozzle R19-150-155 Pick And Place 1.0 Mm To 15.00 Mm Tin Size
H04 Pick Nozzle R19-150-155 Pick And Place 1.0 Mm To 15.00 Mm Tin Size

Large Image :  H04 Pick Nozzle R19-150-155 Pick And Place 1.0 Mm To 15.00 Mm Tin Size

Product Details:
Place of Origin: Japan
Brand Name: FUJI
Certification: CE
Model Number: NXT I
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Plastic fixed, Carton package
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

H04 Pick Nozzle R19-150-155 Pick And Place 1.0 Mm To 15.00 Mm Tin Size

Description
Product Name: FUJI NXT 1st Generation Nozzles Nozzle Head: H04
Type: NXT Mounter Nozzle Parts Diameter: 1.0, 1.3, 1.8, 2.5, 3.7, 5.0,10.0, 15.0mm
Usage: Suction Smd Components Nozzle Tip Material: Ceramic
High Light:

pick and place nozzle

,

smt pick and place nozzles

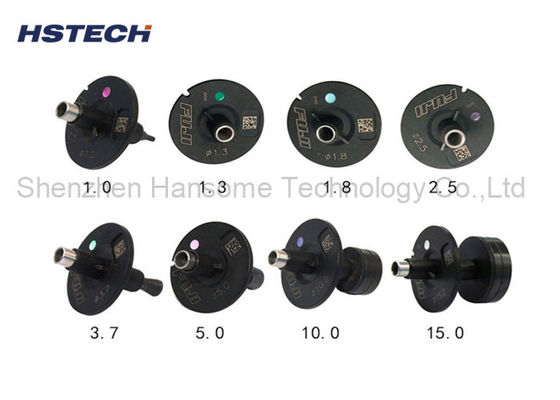

R19-150-155 FUJI NXT Pick and Place H04 Nozzle Tin Size from 1.0mm to 15.00 mm



NXT H12/H08/H04/H01 Nozzle Series



Part Numbwr Description
AA05600 H0812 Yellow Φ0.45/0.3
AA05700 H08 Blue Φ0.7/0.5
AA05800 H08 Pink Φ1.0
AA20A00 H08 Green Φ1.3
AA06400 H08 Orange Φ1.3 Melf
AA20B00 H08 Aqua Φ1.8
AA19G00 H08 Orange Φ1.8 Melf
AA20C00 H08 Purple Φ2.5
AA06504 H08 Orange Φ2.5 Melf(R07-025M-070)
AA0WT00 H08 Purple Φ2.5G
AA20D00 H08 Yellow-Green Φ3.7
AA18C00 H08 Yellow-Green Φ3.7G
AA20E00 H08 Medium pruple Φ5.0
AA06300 H08 Red Φ5.0G
AA06W00 H04 Pink Φ1.0
AA06X00 H04 Green Φ1.3
AA06Y00 H04 Aqua Φ1.8
AA22Z14 H04 Orange Φ1.8 Melf
AA06Z00 H04 Pruple Φ2.5
AA07F00 H04 Pruple Φ2.5G
AA07A00 H04 Yellow-Green Φ3.7
AA07G00 H04 Yellow-Green Φ3.7G
AA07B00 H04 Medium pruple Φ5.0
AA07H00 H04 Red Φ5.0G
AA07C00 H04 Medium pruple Φ7.0
AA07K00 H04 Dark Red Φ7.0G
AA07D00 H04 Medium pruple Φ10.0
AA07L00 H04 Navy Φ10.0G
AA07E00 H04 Medium pruple Φ15.0(R19-150-155)
AA07M00 H04 White Φ15.0G(R19-150-155)
AA8WX00 H04S Φ2.5(R19-025-155-S)
AA8CC00 H04S Φ3.7(R19-037-155-S)
AA0AS00 H01 Pink Φ1.0
AA05800 H01 Green Φ1.3
AA0MZ00 H01 Orange Φ1.3 Melf
AA06900 H01 Aqua Φ1.8
AA11R00 H01 Orang Φ1.8 Melf
AA07000 H01 Purple Φ2.5
AA08400 H01 Purple Φ2.5G
AA07100 H01 Yellow-Green Φ3.7
AA08500 H01 Yellow-Green Φ3.7G
AA07900 H01 Medium pruple Φ5.0
AA07200 H01 Red Φ5.0G
AA08000 H01 Medium pruple Φ7.0
AA07300 H01 Dark Red Φ7.0G
AA08100 H01 Medium pruple Φ10.0
AA07400 H01 Navy Φ10.0G
AA08200 H01 Medium pruple Φ15
AA07500 H01 White Φ15.0G
