| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~10 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | SMT Nozzle Cleaner | Power Supply: | 200W |
|---|---|---|---|
| Machine Color: | Computer White | Cleaning Solvent: | D.I Water |
| Machine Weight: | 45kg | Machine Size: | 500*440*530mm |
| High Light: | pcb cleaning equipment,circuit board cleaning equipment |
||
Data Sheet Nozzle Cleaning Machine HS-800.pdf

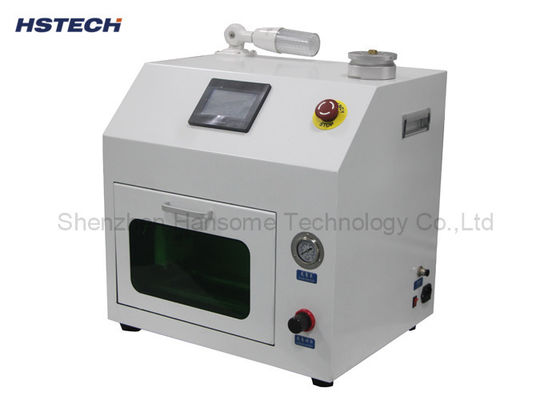

200 Watt SMT Nozzle Cleaner with Transprent Cover Water Level Induction
Introduction
HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Product Features
1, Elegant appearance, high precision 304 stainless steel machine body.
2, Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.
