SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous

SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous
SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous

Large Image :  SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9000~12000usd/set
Packaging Details: Wooden case
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous

Description
Product Name: SMT Stencil Cleaning Machine Other Name: Screen Printer Stencil Cleaner
Cleaning: SUS304 Stainless Steel Stencil Size: Standard Size 740*740*40mm, Customized Is Available
Cleaning Obejects: Solder Paste, Red Glue, Flux, Sosin,etc. Cleaning Solvent: Alcohol
Drying Function: Yes Machine Dimension: 980MM(L)*700MM(W)*1730MM(H)
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

Data sheet of Pneumatic stencil cleaner HS-600.pdf...



SUS304 Stainless Steel Alcohol Solvent Aqueous SMT Stencil Cleaning Machine



Machine introduction

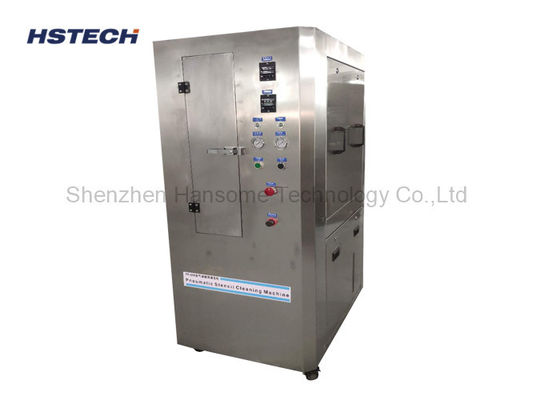

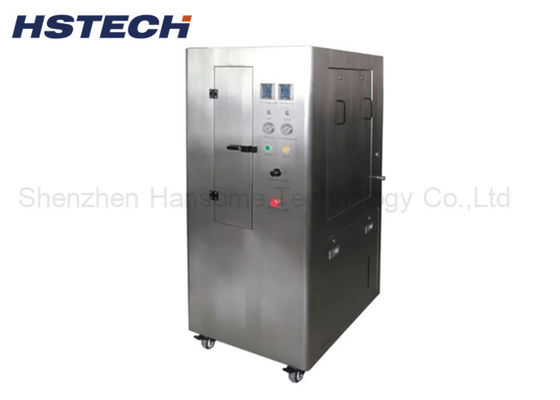

This machine (Model:HS-600) we call it pneumatic SMT stencil cleaning machine, it's a automatic stencil cleaning equipment, with the cleaning and drying function combined. It's used in the SMT assembly process, designed for automatic cleaning solder paste steel mesh, red glue steel mesh, cooper mesh, resin screen,etc. It use the alcohol as the cleaning solvent, equiped with the 3 level filter system to achieve the solvent repeatly using, save the solvent consumption. This machine use the spray cleaning method for cleaning,powered by the air compressor, use the pump siphon the solvent and drive the spraying cleaning bars for double sides cleaning, the cleaning performance is very good.



Features



1, The machine adopt high quality SUS 304 stainless steel machine body, durable and stable, at the same time with beautiful appearance.

2, Driven by the compressor air, without electricity, very safety and no damage to human beings.

3, With both cleaning and drying function, one button operation, automatically drying the stencils after cleaning process.

4, Two sets spray bars 360 degree rotation cleaning, high quality spray nozzles, no cleanign dead corner and enough spraying pressure.

5, Cleaning solvent in and out pipe equipped.

6, 3 levels filter system, 10um,5um,1um, cleaning solvent recycle using, cost-effective and save energy.

7, Safety cleaning room, after the stencils put in the cleaning room, it will lock down tightly.

8, Modular design, automatic solvent siphone and emission, and all automaticaly operation, very efficienty.

9, Easy maintenance, open the cover and the operator can change the filters easily.



Specification



Model HS-600
Power supply Compressor air
Application stencil,metal mesh, steel mesh,cooper screen,gule screen
Stencil size standard 29inch and below,740*740*40mm
Cleaning solvent Alcohol
Cleaning liquid capacity Max 45L,Min20L
Best cleaning fluid using volume 40L
Liquid consumption 120ml/pc
Cleaning method

Rotary double side pressure injection and high pressure air

Cleaning time 2~4 Min Stencil and Copper Screen
Drying time 2~5 Min
External air supply 0.4Mpa~0.6Mpa
Consumer air quantity 400~600L/Min
Air outlet size φ125*25mm
Solder dross filter mode 3 level filter(10um,5um,1um)
Weight 305kg
Machine dimension 980MM(L)*700MM(W)*1730MM(H)



Cleaning performance



SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous 0

SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous 1



SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous 2



SUS304 Stainless Steel SMT Stencil Cleaning Machine Alcohol Solvent Aqueous 3
