| Place of Origin: | Japan |
| Brand Name: | JUKI |
| Certification: | CE |
| Model Number: | 504 |
| Minimum Order Quantity: | 5pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic fixed, Carton package |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | SMT Nozzle | Nozzle Head: | JUKI 540 Nozzle |
|---|---|---|---|
| Usage: | SMT Production Line | Material: | Ceramic+Tungsten Steel |
| Condition: | 100% Original Or Copy New | Warranty: | 1 Year |
| High Light: | smt pick and place nozzles,smd nozzle |
||

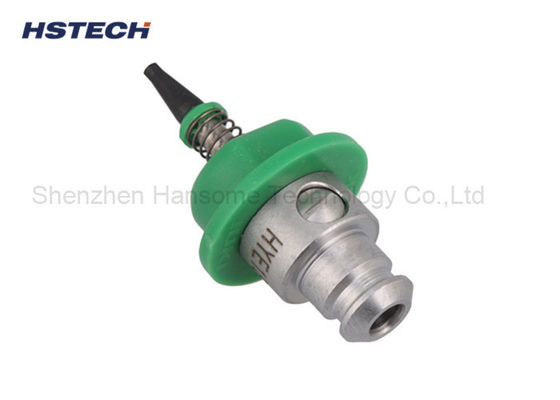

Silver Color SMT Spare Parts 2000 Series JUKI 504 Pick and Place Nozzle
Introduction
This JUKI 504 nozzle used for JUKI 2000 series Chip Mounter, for SMD pick and place, it's made of high quality Ceramic, Tungsten Steel and Rubber.
Specifications
| Brand | JUKI |
| Usage | SMD Chip Mounter |
| Suction hole | Single |
| Nozzle base | Tungsten steel |
| Parts number | E36037290A0 |
| Nozzle type | 504 |
| Chip mounter | 20000series |
| Nozzle size | 31x16mm / 1.22 x 0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Tungsten steel+rubber+ceramic |
| Weight | 8g/0.353 ounces |
| Package | Customized Blister and carton box |
Features
1, Using high quality materials, ceramic, tungsten steel and rubber, better mounting performance and long lifespan.
2, The nozzles are well packed by the customized blister, won't be broken during the shipment.
3, Standard size without any error, high precision.
4, Green and slive color designed, good appearance and environment protected.
5, Suitable for Component suction and placement, like cathode capacitance, diode, SOT, QFN, BGA and so on.
JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
