4 Axis Automatic Soldering Robot Single Doubel Iron / Tip Rotation AC220V/110V

4 Axis Automatic Soldering Robot Single Doubel Iron / Tip Rotation AC220V/110V
4 Axis Automatic Soldering Robot Single Doubel Iron / Tip Rotation AC220V/110V

Large Image :  4 Axis Automatic Soldering Robot Single Doubel Iron / Tip Rotation AC220V/110V

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S331R/HS-DS331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam inside
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detailed Product Description
Product Name: Desktop Soldering Machine Axis: 4 Axis
Platform: Single/dual Soldering Head: Single/dual
Warranty: 1 Year Voltage: AC220V/110V,50/60Hz
High Light:

auto soldering machine

,

automated soldering equipment

Single Doubel Soldering Iron / Tip Rotation Available Desktop Soldering Machine



Introduction

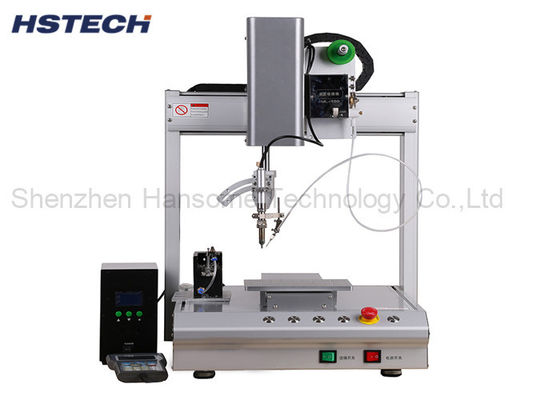

This automatic desktop type soldering machine is 4 axis moving system, single soldering iron with XYZ travel range 300*300*100mm, also rotation available. This machine fixed the product by the customized fixtures, manual programing with the teach pandent box,it's a economic and cost-effective soldering machine.



Application



1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.



Features



1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective,

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4,
Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld LCD teaching pendant, the programming is simple and easy to learn.



Specification



Model HS-S331R/HS-DS331R
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 300*300*100mm
R axis 360 degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD,CorelDRAW
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension

520*585*800mm
