V Cut Line Pcb Separator Machine Automatic Multiple Blade High Speed Steel Tool

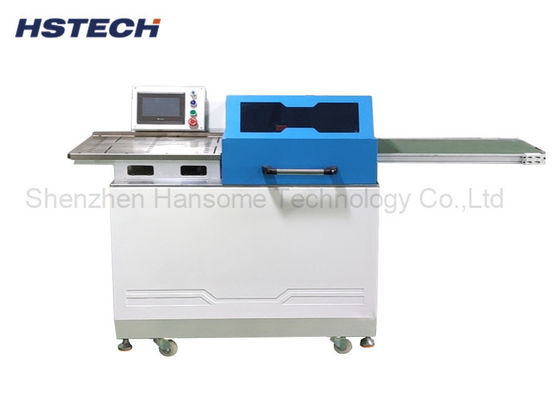

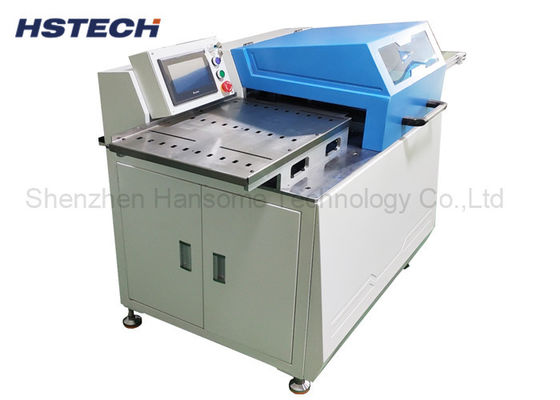

Automatic Multiple Blade V-cut Line PCB Depaneling Separating Machine

Description

This automatic Multiple blade PCB depaneling machine adopts multiple groups upper and down blade for separating, max can install 3 groups blade,each group blade can install and unload different size mesotrons to fit different width panels separating requirement.

The machine use the computer screen control with a counting device, which you can use to preset the processing production,and the space of cutting tool is visible on the screen.

Features

1, Multiple groups, multiple upper and down blade separating at the same time, greatly lower the separating force stress,
protect the boards without bent.
2, By customized the mesotrons to fit the width of each V-cut lines, the mesotrons used for fix the blades, different boards need different mesotrons.
3, Min distance between balde is 3mm, blade thickness is 0.2mm.
4, The blade base can install and unload freely, max can install 3 groups blade base.
5, The machine adopts PLC and touch screen control, Infrared light curtain sensor, high security.
6, This machine designed for LED lighting industry, especially for LED tube, whole LED hard strip light, and other strip boards.
7, 100,000 pcs products production per day,high efficiency and save labor.
8, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.

Specification
