| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-310 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden pacakge |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |
| Product Name: | Pneumatic PCB Separating Machine | Other Name: | Pneumatic PCB Depanelizer |
|---|---|---|---|
| Air Pressure: | 0.5-0.8Mpa | Voltage: | AC220V/110V |
| Pcb Thickness: | 0.2 To 5.0mm | Pcb Length: | 0 To 360mm |
| Package: | Wooden Case | Condition: | New |
| Highlight: | v cut pcb depanelizer,pcb board cutting machine |
||

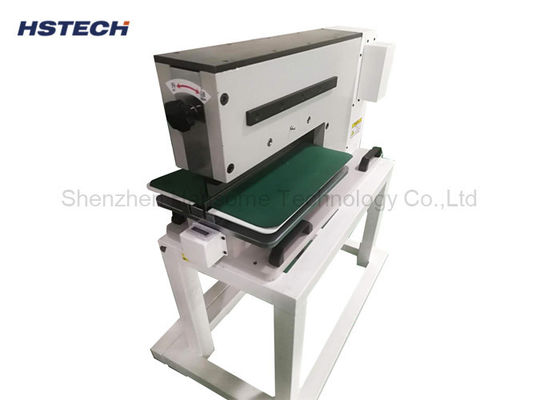

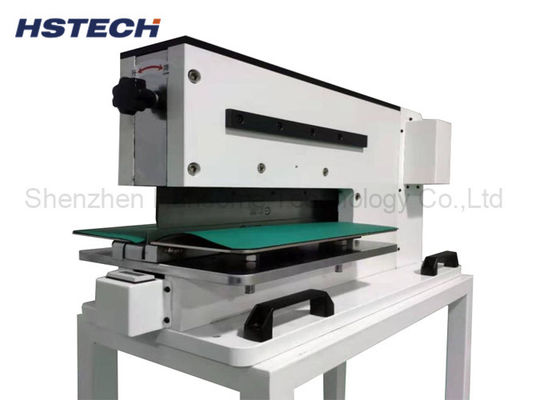

Powerful Low Stress V-Cut Line Linear Blade PCB Depanelizer Equipment
Introduction
This machine is pneumatic pcb depanelizer, also called guillotine type PCB depaneling machine, it used for separating the V-cut line connectted PCB, with high power air cylinder driven the blade base, place the PCB on the platform, and step on the feet switch to finish separating, it has much better performance than the blade moving pcb separator, ultra low cutting force stress and well protected the boards.
Features
1, Suitable for all kinds of PCB boards with V-cut
2, Guillotine type blade separating, ultra low force stress at 500-600uE, smooth and flat, no bent and glitch.
3, Penumatic and electricity driven combined.
4, Security: small guillotine only available for board feeding, ensure the safety of the operator.
5, Easy maintanance, operator can handling the machine with easy training.
6, Durable, using import high quality steel made cutting tool.
Specification
| Product name | PCB depanelizer |
| Model | HS-310 |
| Air cylinder | High power cylinder |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
