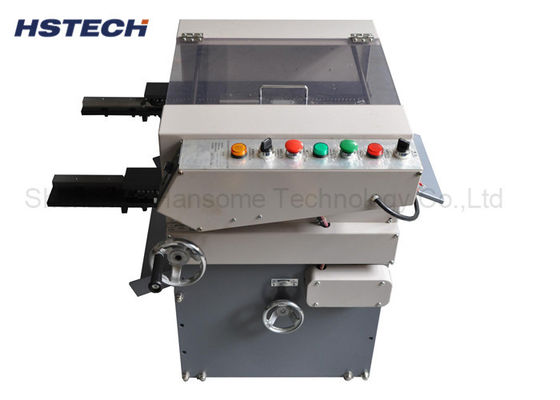

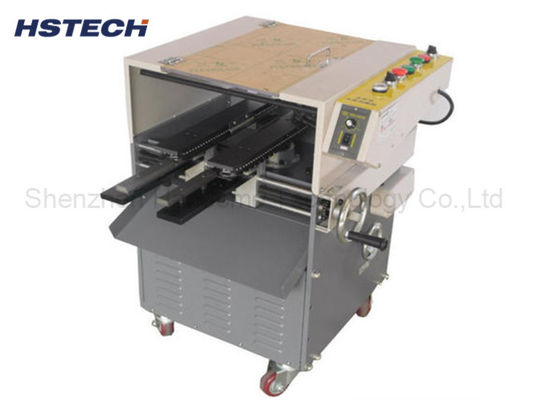

New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade

New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade
New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade

Large Image :  New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-500LC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Automatic PCB Lead Cutting Machine Other Name: PCB Extra Feet Cutting Machine
Voltage: AC220V,AC380V, 50/60Hz Efficient PCB Size: 400*250mm
Min Lead Height: 1.0-1.5mm Min Blade Available: 8inch, 10inch
Machine Body: Stainless Steel Condition: New
High Light:

lead forming equipment

,

pcb lead cutting machine

Max 250mm PCB Width 8/10inch Blade Applied Automatic PCB Lead Cutting Machine



Introduction



This machine is used for cutting the extra feet/lead of PCBA after wave soldering, the machine mainly including two parts, the PCB fixing, and the blade fixing. The PCB is transported by the chain, fixed by the clamper on both side, and the thimble at the buttom of the PCB. After the blade is fixed and the height setted, the PCB will be transported for the automatic lead cutting. The blade rotate fast and stability,at the same time it's very low noise and high efficiency. Warp prevention device is equipped to ensure no damage on the PCBA boards.



Feature


1, Adopts the eagle claw type shrapnel fixture, clamping PCB board automatic push, high stability. Plate feeding speed can be adjusted, the spindle speed is fast, low noise, high precision, fast efficiency.

2, A pair of conveyor chain is equipped in the model in which clamp and deliver the PCBA to the blade turning in high speed for trimming.

3, AC380V, 3 phase working voltage. Grouding wire equipped.

4, The machine can connect with the automatic soldering machine or AI machine.
5, High stability, it can connect with the automatic soldering machine or AI machine.
6, With the prevent bending device, to overcome the bending PCB in welding.
7, Input speed can be adjusted, max. speed is 3m/min.



Specification



Model HS-500LC
Power AC220, 50/60Hz/380V,50/60Hz
Max. PCB size 400mm(L) x 250mm(W)
Main axis speed 4500/Min
Main axis motor 3/4 Hp
Guide rail speed 0-3 M can be adjustable
Min. lead height 1.0-1.5mm Min
Machine Demension 750*600*860mm(W*D*H)
Net Weight 115KG



New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade 0



New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade 1



New Condition Automatic PCB Lead Cutting Machine Max 250mm PCB Width 8/10 Inch Blade 2
