Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-A310 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden pacakge |
Delivery Time: | 10~15 work days |
Payment Terms: | T/T, Western Union, MoneyGram, D/P |
Supply Ability: | 200sets per month |
Product Name: | Auto Guillotine PCB Depanelizer | Other Name: | Auto Guillotine PCB Separator |
---|---|---|---|
Voltage: | AC220V/110V | Driven Motor: | Step Motor And Servo Motor |
Max Separating Length: | 1-240mm | Fiting Board Width: | 50-150mm |
Feeding: | Automatic | Separating: | Automatic |
Highlight: | pcb board cutting machine,pcb depaneling machine |

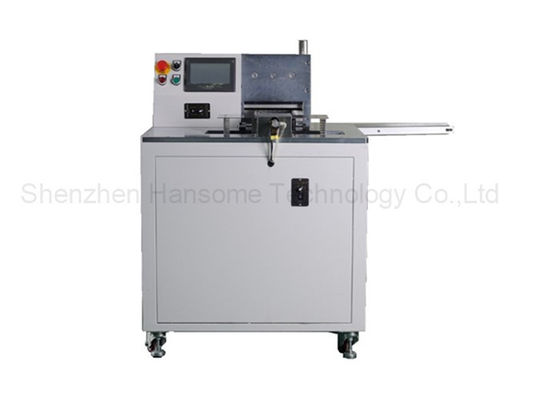

Max 240mm Length Servo Motor Automatic Guillotine Type PCB Depaneling Machine
Introduction
This machine is a guillotine type PCB depaneling machine, but it use the track to achieve automatic PCB board loading instead of the manual board loading, so it's a automatic machine, This machine use the human interface operating system, easy and convenient operation. It's a more efficient guollitine type board depaneling machine.
Features
1, The whole machine body is made of stainless steel, stable and durable.
2, The machine adopt two pcs linear blade, the balde length is 240mm, and board width is 50-150mm.
3, Human interface operating system.
Specification
Product name | Automatic guillotine PCB depaneling machine |
Model | HS-A310 |
Part-up height | Max 35mm |
Part-down height | Max 20mm |
Air supply | 5-7kgf/c㎡ |
Production ability | 1800-4000pcs/H |
Voltage | AC220V/110V,50/60Hz |
Separating width | 1-240mm |
Blade | Two pcs linear guillotine blade |
Blade adjustment distance | Upper and down 3mm |
Separating speed | 1-300mm/s |
V-cut thickness | 0.6-2mm |
Machine size | 900*800*1100mm |
Weight | 150kg |
