500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V

500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V
500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V
500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V 500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V 500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V 500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V

Large Image :  500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-203
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week

500-800μM PCB Depaneling Equipment Low Force Stress Moving Circular Blade AC 110/220V

Description
Product Name: Blade Moving PCB Separator Other Name: Easy Type PCB Separating Machine
Power: 60W Voltage: AC 110 / 220V,50/60HZ
Usage: All Kinds Of V-Cut PCBs Warranty: 1 Year
High Light:

pcb board cutting machine

,

pcb depaneling machine

500-800μm Low Force Stress Moving Circular Blade PCB Depaneling Machine



Introduction

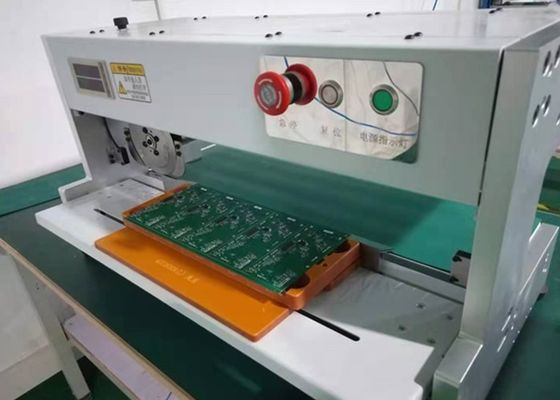

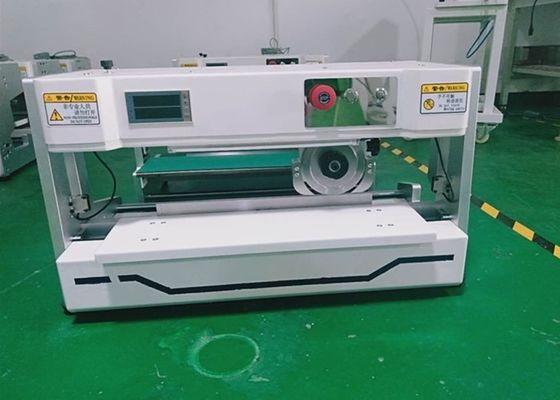

This machine is a blade moving PCB depaneling machine, manual loading the PCBs and automatic separating. It's a easy PCB separator, small volume, easy operation, and fast speed.



Features



1, After the entire PCB is soldered, if not separated well will damage the circuit board and the components. The machine controls the force stress     in the range of 500-800 μm, which prevent solder cracks and part breaks, and improve production.

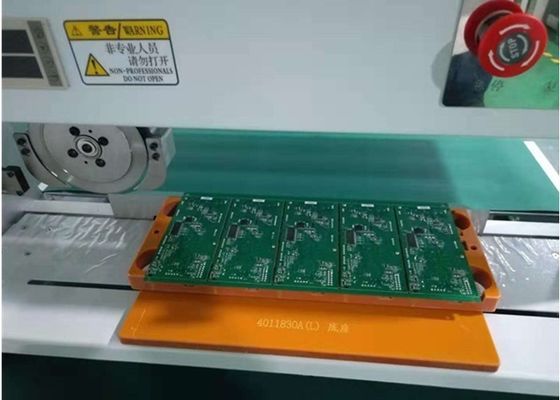

2, This machine adopts the upper circular blade and lower straight balde combined working. After the V-cut of PCB manual insert into the straight       blade, press the foot switch lightly, the upper round knife moves horizontally to the setted fixed point to finished the separating.


3, The machine use PLC control, with technical functions, precise positioning, strong stability, there are two options cutting distance, 400mm and       600mm.

4, The upper and lower blades are made of HKD11 Japan brand high-speed steel, which can be sharpen many times and repeatedly use.

5, Traveling distance, 0-400MM / 600MM (others can be customized), the height of upper circular blade can be adjusted range at 0-5mm, suitable     for various thicknesses PCB, solving the problem of different depths of V-cut grooves of PCB boards.

6, Maximum cutting board width: unlimited (single-piece PCB board size: 1mm-200mm is best, the entire PCB width is 250mm)

7, The operating platform can be adjusted up and low, and can be customized according to the height of the PCB board components.                         The standard machine is suitable for PCB boards with components height less than 32MM (PCB boards with other component heights can be       customized)

8, The machine equipped with light curtain safety device and the knife protection double safety protection, also built-in buzzer, alarm for                      illegal operation, and can be equipped with the optional acrylic protective cover to avoid employee injuries under customer's requirement.



Specification



Model HS-203 HS-206
Principle Linear blade insert into board V-slot, circular blade moving cutting
Blade Bottom linear balde, upper circular blade
Voltage AC110V/220V 50/60Hz
Blade size(circular blade) ϕ125mm*30mm*3mm
Blade size(linear blade) 420mm×65mm×6mm
Max cutting length 5~400mm 5~600mm
PCB thickness 0.8~3mm
Separation speed 300~500mm/second(adjustable)
Separation width Best 1~200mm
Components height ≤32mm( or customized)
Power 60W
Machine dimension 710x450x420mm 900x450x420mm
Weight 55kg 75kg



Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board,

LED board, LED strip board)
