60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain

60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain
60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain 60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain 60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain

Large Image :  60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-206
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week

60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain

Description
Name: Moving Blade Type PCB Separator Machine PCB Separator PCB Depanelize Other Name: SMT Automatic PCb Cutting Machine
Pcb Length: Max 600mm, Or Customized Type: Blade Moving To Cut Pcb
Application: Cutting All Kinds Of PCb With V-groove Blade Material: Imported SHD61 High Speed Steel
Quality: Durable,high Rank Warranty: 1 Year
High Light:

pcb board cutting machine

,

pcb depaneling machine

SMT PCB Board Separating Machine 600mm Traveling Distance with Light Curtain



Introduction



This machine adopt Japan brand high speed steel balde as the cutting tool, use circular and linear blade combination to finish the separating process, linear blade fix the PCB on the bottom, and circular blade moving to cutting the entire printed circuit into small pcs PCB. It's a eady and convenient PCB separating machine, suitable for cutting all kinds materials boards with the V-groove, like the aluminum board, fiber-glass board, LED board,etc.



Features



1,  The upper and lower blades are made of HKD11 Japan brand high-speed steel, which can be sharpen many times and repeatedly use.
2, Traveling distance max at 600mm, if need longer also can be customized, the height of upper circular blade can be adjusted range at 0-5mm,

     the user's manual will teach how to do the adjustment.
3, Maximum board cutting width is unlimited, best at 50-200mm.

4, The whole machine is made of stainless steel structure, very stable and ensure the cutting precision.

5, Cutting speed(circular blade moving speed) can be setted freely.

6, Digital display show the cutting speed, and production quantity.

7, Air pressu



Specification



Model HS-203 HS-206
Principle Linear blade insert into board V-slot, circular blade moving cutting
Blade Bottom linear balde, upper circular blade
Voltage AC110V/220V 50/60Hz
Blade size(circular blade) ϕ125mm*30mm*3mm
Blade size(linear blade) 420mm×65mm×6mm
Max cutting length 5~400mm 5~600mm
PCB thickness 0.8~3mm
Separation speed 300~500mm/second(adjustable)
Separation width Best 1~200mm
Components height ≤32mm( or customized)
Power 60W
Machine dimension 710x450x420mm 900x450x420mm
Weight 55kg 75kg



Application



(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)

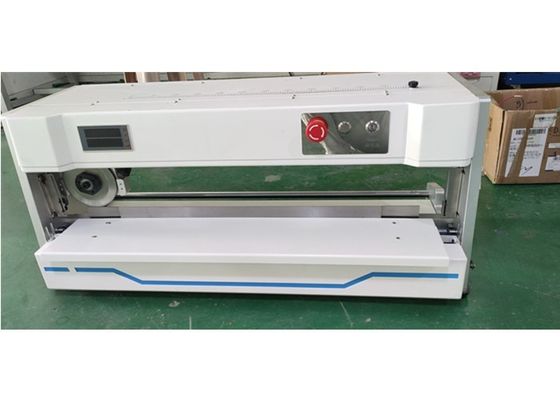

60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain 0

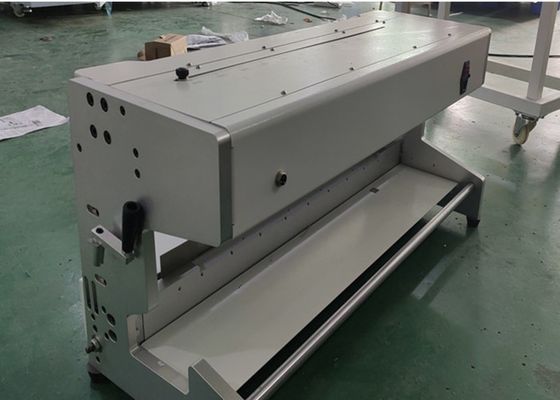

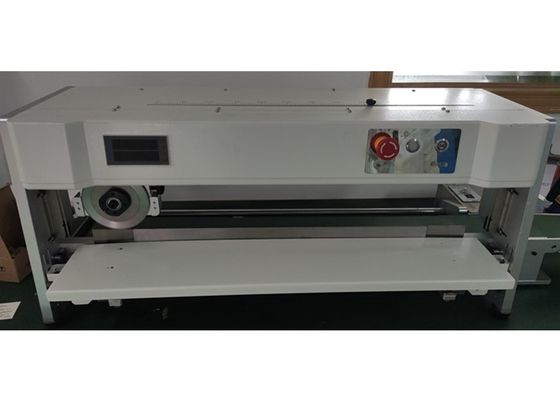

60W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain 160W SMT PCB Board Cutting Machine 600mm Traveling Distance With Light Curtain 2
