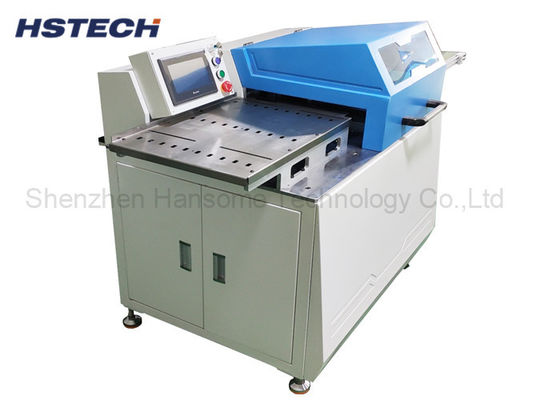

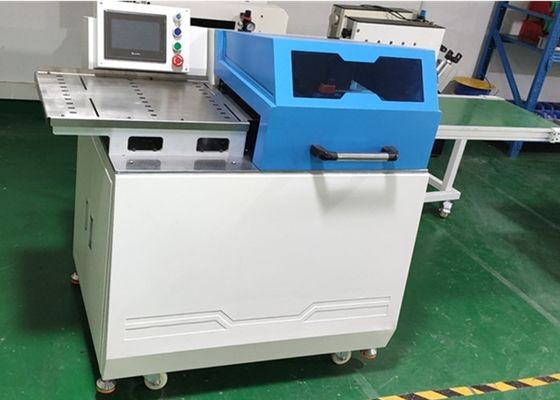

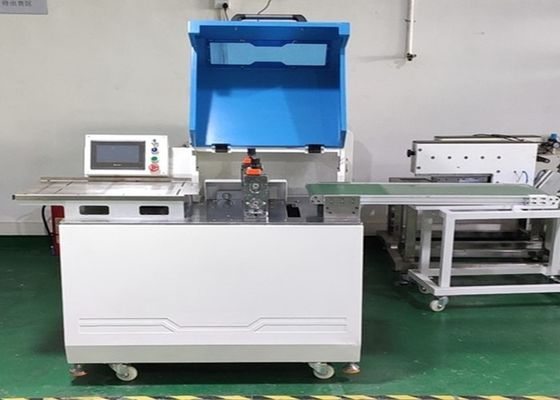

Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control

Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control
Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control
Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control

Large Image :  Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-F380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case with foam protective
Delivery Time: 1 month
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month

Automatic Batch PCB Cutting Equipment 360mm Width With Touch Screen Control

Description
Product Name: Automatic Batch LED Separating Machine Other Name: Multiple LED PCB Depaneling Machine
Max PCB Width: 360mm Blade Size: Φ360*Φ43.5*6mm
Blade Material: High Speed Steel Cutting Tool Cutting Thickness: 1.0-3.5mm
Machine Dimension: 2200*580*1060mm Warranty: 1 Year
High Light:

pcb board cutting machine

,

pcb depaneling machine

SMT Production Automatic Batch PCB Cutting Equipment With Touch Screen Control



Description


This automatic PCB separator machine used for batch PCB separating, it adopts multiple group blades as the cutting tools, upper and down blade working together for separating, greatly lower the cutting force stress. The machine use the customized mesotrons to fix the distance between blades, so the size of mesotrons according to the distance between the v-cut line, different PCB need different size mesotrons.                   Normally we would like to know the customers' PCB width and length, then we can decide the blade group quantity, and we need the PCB samples to customized the mesotrons.



Features


1, Stainless steel machine body, stable and make sure the cutting precision.

2, PLC and touch screen control, operator set the parameters before the separating.

3, By customized the mesotrons to fit the width of each V-cut lines, the mesotrons used for fix the blades, different boards need different        mesotrons.

4, How many groups blade need to use depends on the length of the panels, we will choose the suitable goups balde to make sure the board cutting force stress to the lowest, the solution will be make to well protective the panels.

5, The machine suitable for separating the panels at max 360mm width, need customized if longer.
6, Min distance between balde is 3mm, blade thickness is 0.2mm.
7, The blade base can install and unload freely, so it can separating many different size panels by customized different size mesotrons.

8, The machine equipped with nfrared light curtain sensor, high security.
9, This machine designed specially for LED lighting industry, especially for LED tube, whole LED hard strip light, and other strip boards.
10, Very high production ability, 100,000 pcs products production per day,high efficiency and save labor.
11, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.



Specification



Model HS-F380
Efficiency cutting width 0-360mm
Blade size  Φ360*Φ43.5*6mm
Blade thickness 0.2mm
Min Distance between each blade 3mm
Blade material Overseas high quality steel
Production ability 100,000pcs per day
Voltage AC110V/220V
Power 200W
Machine dimension 2200*580*1060mm
Weight 160KG
