Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner

Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner
Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner
Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner

Large Image :  Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S331RA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam protected
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month

Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner

Description
Product Name: Desktop Auto Soldering Robot Special Feature: With Smog Cleaner Installation
Working Platform: Single Station Soldering Tip: Single Tip
Moving Axis: 4 Axis Input Ratings: AC220V/110V,50/60Hz
Usage: Pcb Soldeing,Welding,Circuit Board Soldering Weight: 80kg
High Light:

auto soldering machine

,

automated soldering equipment

Automatic Desktop Soldering Robot with Smog Cleaner for Air Purification

Introduction

This automatic soldering machine is a special customized soldering machine, it equipped with a smog cleaner to clean the solder smog, for keep better air environment in the production factories. This machine is a normal requirment in some Europe countries, and it become a trand all over the world. The cleaner has a smog suck in pipe which is installed on the top of the solder tip, and moving together with the solder tip, through this method the cleaner can suck in most of the smog,keep the air clean and more health.

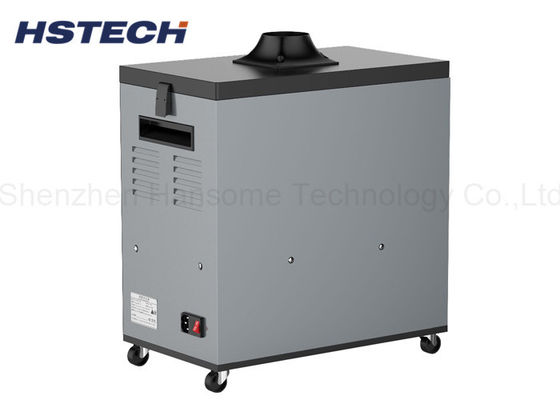

Smog Cleaner Features

1, The pipe is 1.4M in length, big opening size convenient for smog suck in.Metal material machine body, stable.
2, Brush-less motor, characterized by low noise and high revolution, stable operation, long service life, low power consumption, high efficiency    (maintenance free and zero consumables).
3, Vortex fan design, characterized by fatigue resistance, smooth running, low noise, large air volume, high suction and high efficiency.
4, Step-less speed regulator installed for remote control of air volume.
5, Multiple filter design to ensure thorough filtration of toxic or hazardous substances and protect human and environmental health.
6,  All filter elements are replaceable, which both extends the service life of filtering cores and reduces their operating cost.
7,  Easy installation and environment fitting, with National air quality testing listed.
8, CE certified, safe and reliable.

Smg Cleaner Specification


ModelH100AH200A
Voltage220V/110V,50/60Hz220V/110V,50/60Hz
Power100W200W
Pipe sizeDiameter 75mm,length 1400mmDiameter 75mm,length 1400mm
Noise<42dB<50dB
Air volume250m³/h370m³/h
Weight15kg17kg
Machine body size420*245*450mm420*245*450mm



Machine Features



1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective,

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4,
Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld LCD teaching pendant, the programming is simple and easy to learn.


Specification


ModelHS-S331R
VoltageAC110V/220V,50/60Hz
X/Y/Z working range300*300*100mm
R axis360 degree
X/Y/Z moving speedmax 300mm/s
Driven systemStepper motor,timing belt
Linear guideTaiwan brand high precison guide
Repeat accuracy±0.02mm
ProgramingTeach pendant
Control systemControl board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Iron Tin cleaningAir cleaning/pneumatic
External interfaceUSB+RS232
Soldering methodPoint/drag soldering
Weight48kg
Machine dimension

520*585*800mm

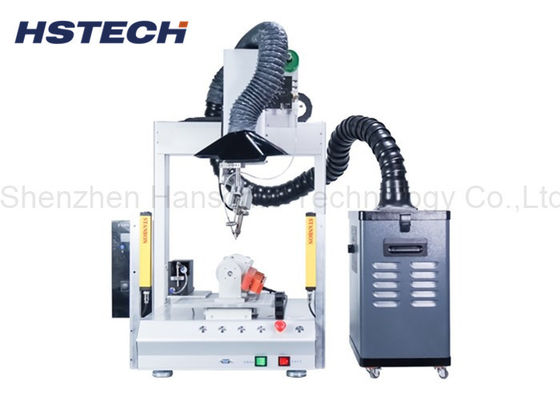

Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner 0

Air Purification Automatic Soldering Robot 4 Axis Single Tip With Smog Cleaner 1
