Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month

Handheld LCD Automated Soldering Equipment Hiwin Linear Guide Base Point New Condition

Description
Product Name: Automatic Soldering Machine Other Name: Desktop Soldering Machine
Working Station: Single/double,optional Soldering Iron: Single,or Double
Rotation: Optional Condition: New
Type: Desktop Warranty: 1 Year
High Light:

auto soldering machine

,

automated soldering equipment

Hiwin Linear Guide Base Point Handheld LCD Automative Soldering Machine



Introduction



Automatic soldering machine used for replacing the traditional manual soldering iron, by setting the programs, the machine will work automatically. The machine by customized the fixtures to fix the product need to be soldered, cause the machine is very heavy, so that can make sure the soldering accuracy.The machine with spot welding, pull welding,automatic cleaning and location corrective,reproduction,array,automatic positioning and so on. Also the machine is easy maintenance and operation, great improve the production efficiency.



Features



1, The machine its self very heavy and stable, make sure the soldering accuracy.

2, Desktop model, the operator can watch the working process very carefully.

3, The machine with automatic heating and solder wire auto feeding function.

4, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.

5, Handheld box to setting the working programs, max can set and save 999programs.

6, The program can import directly, save the manual setting point by point.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple and easy to learn.



Specification



Model HS-S331R
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 300*300*100mm
R axis 360 degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Manual programmin with teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension

520*585*800mm



Application



1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

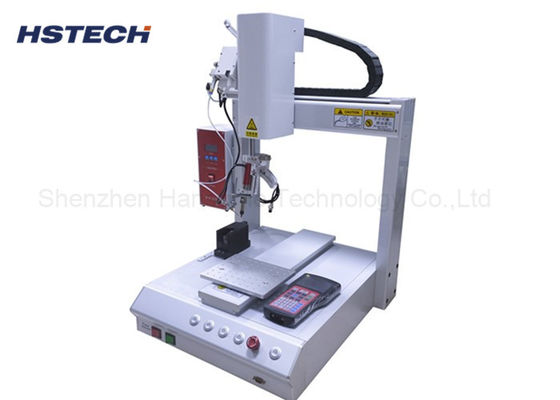

Handheld LCD Automated Soldering Equipment Hiwin Linear Guide Base Point New Condition 0

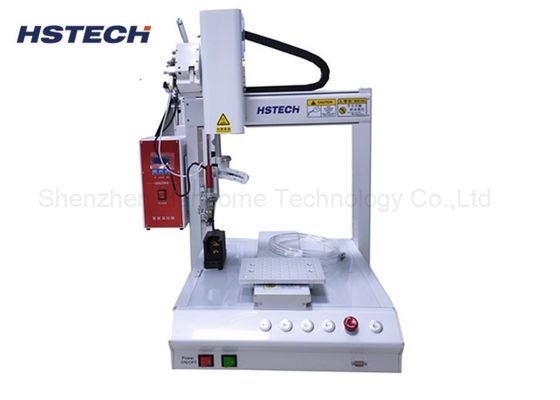

Handheld LCD Automated Soldering Equipment Hiwin Linear Guide Base Point New Condition 1



Handheld LCD Automated Soldering Equipment Hiwin Linear Guide Base Point New Condition 2
