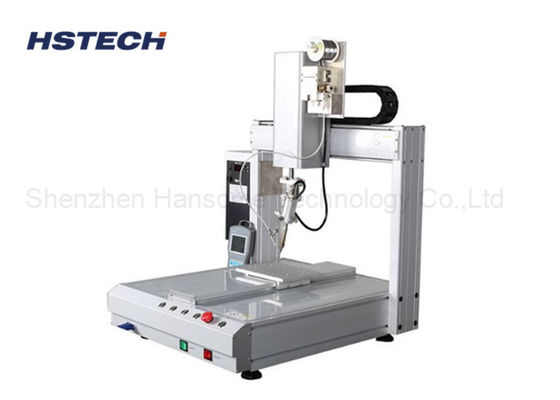

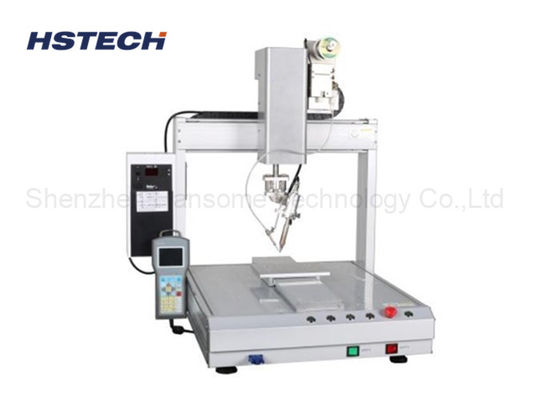

Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date

Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date
Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date
Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date

Large Image :  Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month

Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date

Description
Product Name: Automated Soldering Machine Other Name: PCB Soldering Machine
Working Station: Single Station, Optional Soldering Head: Single Head
Rotation: 360degree Condition: New Production Machine
Type: Desktop Model Warranty: 1 Year
High Light:

auto soldering machine

,

automated soldering equipment

0.6~1.0mm Solder Wire Processing Date SMT Desktop Automated Soldering Machine



Introduction



This desktop SMT Automatic soldering machine is a 3 axis automatic soldering robot. Available for spot welding, drag welding, curve welding, circle welding,irregular curve continuous welding.The proceeding program can be copied, and Max can store 999 programs,also different program can be changed simply for different product with one button, no need to re-program. The machine is made of high quality parts, like use Hi-win linear guide, and the machine body is very heavy and durable, make sure the soldering accuracy. Also the machine is easy maintenance and operation, great improve the production efficiency.



Features



1, Stable machine body,high-strength solder head can be customized for high quality welding.
2, Teach box programming, manual set every soldering points.
3, Program can be fast by re-set ,insert and delete the spot of the soldering or full modification.
4, The feeding tins at anytime to apply for multiple welding and high efficiency.
5, Use high end soldering temperature controller, control the temperature more accurately and more durable.
6, With functions of calibration of R axis, correction of wrong operations.
7, With ±0.02mm repeated precision to achieve precise soldering.

8, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

9. Optional automatic smoke collection to keep the air clean, according to customer's requirement.



Specification



Model HS-S331R
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 300*300*100mm
R axis 360 degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Manual programmin with teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension

520*585*800mm



Application



1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.



Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date 0



Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date 1



Single Station Desktop Automated Soldering Machine 0.6~1.0mm Solder Wire Processing Date 2
