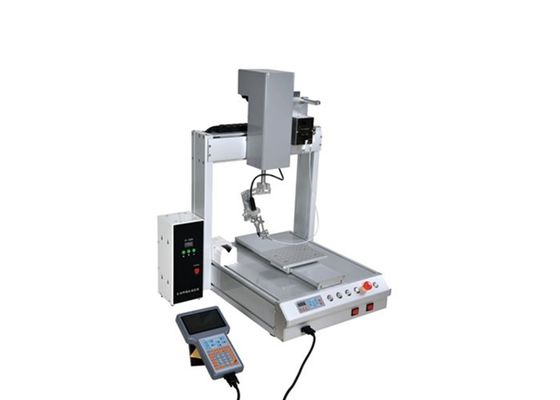

50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming

50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming
50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming
50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming 50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming 50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming 50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming

Large Image :  50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S5331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month

50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming

Description
Other Name: Automatic Soldering Machine Working Station: Double Working Station
Soldering Head: Single Head/Iron Rotation: Yes, 360 Degree
Condition: New Machine Warranty: 1 Year
High Light:

auto soldering machine

,

automated soldering equipment

Automatic Soldering Machine Desktop Type Teach Pendant Programming



Introduction



This 5 axis soldering robot is a high efficiency solder machine,single soldring head with double soldering station, mainly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB welding wire, charger plug welding, connector soldering, DC terminal tinning, LED light strip connection and other fields. Automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.



Features



1, Double soldering station, single head, manual board loading.

2, Hiwin brand linear guide, high working accuracy.

3, With the temperature control system.

4, High efficiency, keep the machine working all the time.

5, Flexible soldering, available for spot soldering, drag soldering and other functions.

6, Optional parts supply available.
7, Teach pendant programming, can save max 99 groups programs,
8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

9, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.



Specification



Model HS-S5331R
Voltage AC110V/220V,50/60Hz
X/Y1/Y2/Z working range 500*300*300*100mm
R axis 360 degree
X/Y1/Y2/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Manual programmin with teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 60kg
Machine dimension

680*585*800mm



50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming 0





50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming 1

50/60Hz Automatic Soldering Robot Desktop Type Teach Pendant Programming 2
