Guilotine Blade 40mm Height PCB Depaneling Equipment 400L/min

Brand Name:	HSTECH
Model Number:	HS-310L
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	200sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Pneumatic PCB Depanelizer

Other Name:

V-CUT PCB Separator

Voltage:

AC100-240V

Pcb Length:

0~ 360mm

PCB Thickness:

0.1~2.0mm

Part Top Height:

40mm(max)

Part Bottom Height:

20mm(max)

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb,LED Board

Packaging Details:

Wooden pacakge

Supply Ability:

200sets per month

Highlight:

40mm Height PCB Depaneling Equipment

Guilotine Blade PCB Depaneling Equipment

400L/min Pneumatic PCB Depanelizer

Product Description

40mm Height MAX Pneumatic Driver Guilotine Blade PCB Panels Depaneling Machine

Introduction

1. Pneumatically driven and electric control , sample design. There have sensor device in the machine ,cuttting board one time with lowest cut stresses.HS-310 apply for separate precise SMD PCBA or thin plates.

2. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process,improve products quality .

3. Due to the special design of the blade ,boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without cutting stress.

Features

1. Cutting force stress under 500, No vibration and noise during cutting process to prevent precise components damage.

2.Pneumatic driver ,solenoid vale controlled , high speed.

3.The up and lower blade height are adjustable , Gap for insertion of the PCB board can easily be adjusted by adjusting knob in the top side of the machine.

4.Lower blade height adjust front and real portion can be adjusted separately, don't need shim , which make change and adjust blade more easy . The blade can sharpening many times, lower cost .

5.The PCB or thin plate without v-grooved can customized tray and prevent stay positioning device.

6.Operation and maintenance can be done also by unskilled personnel .

Specification

Product name	PCB depanelizer
Model	HS-310L
Part-up height	Max 40mm
Part-down height	Max 20mm
Air supply	5Kgf/cm
Output	12.5tons(gross)
Efficient cutting length	1-360mm
Linear blade size	36043.56mm
PCB thickness	0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove )
Blade material	Import high quality high speed steel tool
Separating speed	1-300mm/s
V-cut thickness	0.3-3.5mm
Air consumption	200-400(L/min)
Machine size	700325400mm
Weight	130kg
Suitable board	All V-cut boards

Application boards

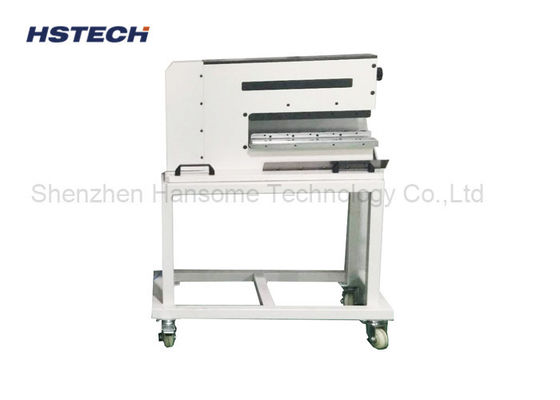

Guilotine Blade 40mm Height PCB Depaneling Equipment 400L/min 0

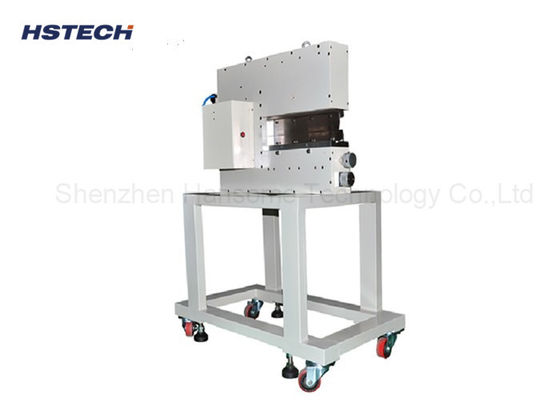

Guilotine Blade 40mm Height PCB Depaneling Equipment 400L/min 1

Guilotine Blade 40mm Height PCB Depaneling Equipment 400L/min 2
