Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO

Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO
Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO

Large Image :  Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-330BF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Vertical PCB Buffer Machine Storage Capacity: 25pcs
PCB Dimension: L(50*50)-(450*330)mm Air Supply: 4-6 Bar,max 15L/min
Material: Stainless Steel Warranty: 1 Year
High Light:

15S SMT Board Handling Machine

,

15L/Min SMT Board Handling Machine

,

FIFO LIFO Fan PCB Buffer

Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO



Introduction



This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual

signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the

signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.



Features



1, Panasonic PLC control.

2, Smart touch screen control panel.

3, With FIFO and By-pass function, or cutomized to multiple function.

4, Using servo motor for accuracy positioning.

5, Hiwin leadscrew for width adjustment, smooth and stable.

6, Smooth magazine lifting device, precision servo driving.

7, Optional fan and exhaust port for heat dessipation.

8, English operation interface.

9, The whole machine is small volume, won't take much factory space.

10, SMEMA communication interface, can be connected with other automation equipment.

11, Three color LED display for machine status.



Specification



Model: HS-BF330
Voltage: AC220V,50/60Hz
PCB Dimension: L(50*50)-(450*330)mm
Air supply: 4-6 bar,max 15L/min
Transport height: 900±20(mm)
Transport Direction: L-R or R-L (optional)
PCB thickness: min 0.46mm
Up/down pitches: 1-4(10mm step)
Store Capacity 25pcs or customized
Cycle time Around 15 seconds
Communication SMEMA
Optional Fan, observation window
Certification CE
Machine Dimension: 600*1150*1560mm
Gross Weight: 280kg

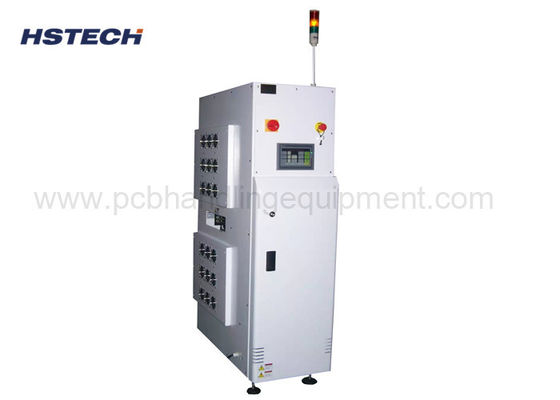

Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO 0

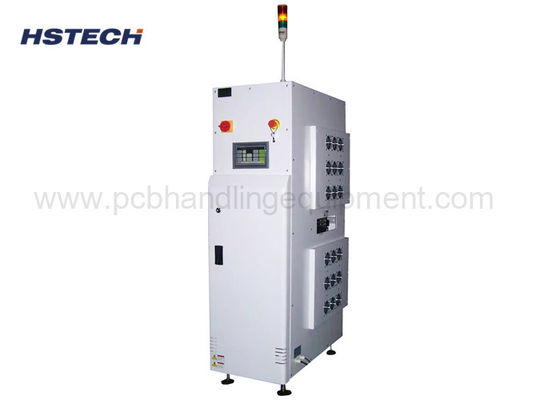

Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO 1

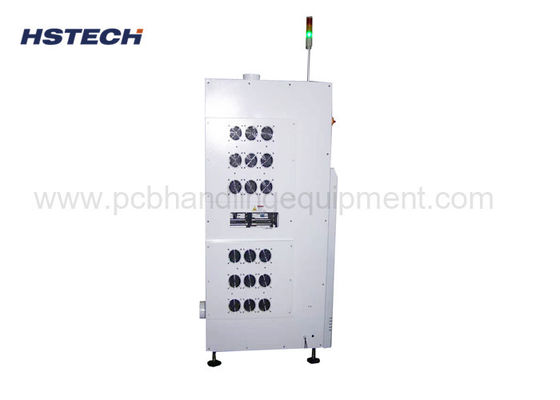

Touch screen Control Small PCB SMT Board Handling Machine With Fan FIFO LIFO 2
