|Product Name:||Inline V-cut PCB Separating Machine||Other Name:||PCB Depaneling Machine|
|Circular Blade Size:||Φ125*30*3mm||Linear Blade Size:||420*45*6mm|
|Cutting Thickness:||High Speed Steel Cutting Tool||Application:||Tic Tac Toe Connected PCB Panel|
|Working Voltage:||AC220V,50/60Hz||Warranty Year:||1 Year|
Inline Vcut PCB Depaneling Machine,
Circular Blade PCB Depaneling Machine,
1.1KW PCB Separating Machine

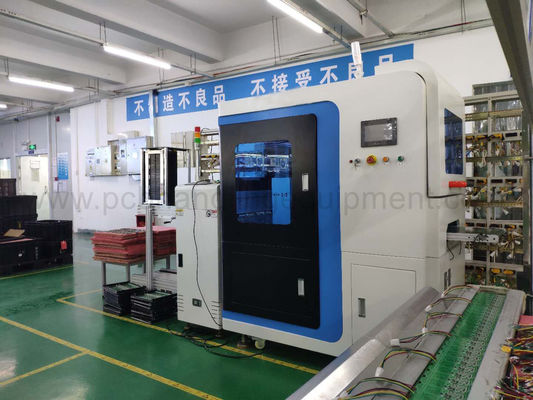

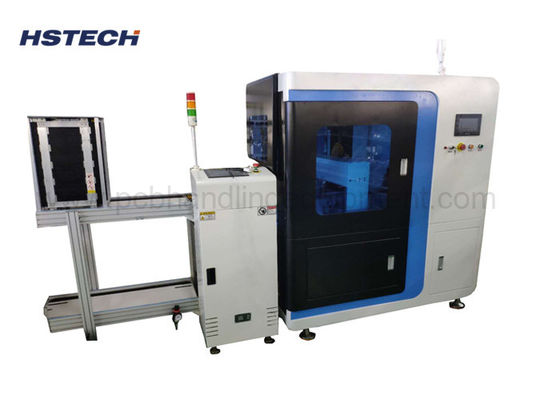

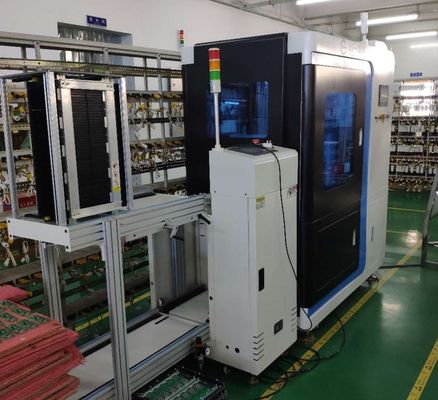

Linear and Circular Blade Fixture Equipped Inline Vcut PCB Depaneling Machine
This PCB separating machine is a full automatic inline V-cut type PCB separating machine, it's use the PCB loader to achieve automatic PCB loading, and the belt will trasport the PCBs for X axis and Y axis automatic Separating with linear blade and circular blade combined.
Operator just put the boards into the magazines and wait the PCB units after separating at the end of the machine.It's a high automatic PCB separating machine.
1, Automatic inline separating.
2, Automatic feeding with PCB loader, automatic X axis and Y axis direction vcut separating.
3, With waste PCB collecting box.
4, Transporting belt for collecting after separated.
5, PLC control precision PCB depaneling, can connect the PCB loader machine, full automatic from board loading and collecting.
6, Save the labour for manual loading the PCBs, much efficiency and more precision.
7, Can save 100 groups board separating data, when separating different type boards, just import the saved data, very convenient.
8, Moving balde type boards separating method, ultra low cutting force stress, suitable for PCB with components double sided.
9, The machine equipped with infrared light curtain sensor, high security.
10, Taiwan brand TBI lead screw, smooth and easy adjusted.
11, High speed Japan brand steel balde, can be sharpen repeatly.
12, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.
|Efficiency cutting length||0-500mm|
|Separating width||≤ 300mm|
|Circular blade size||Φ125*30*3mm|
|Linear blade size||420*45*6mm|
|Blade material||Overseas high quality steel blade|
|Production ability||100,000pcs per day|
