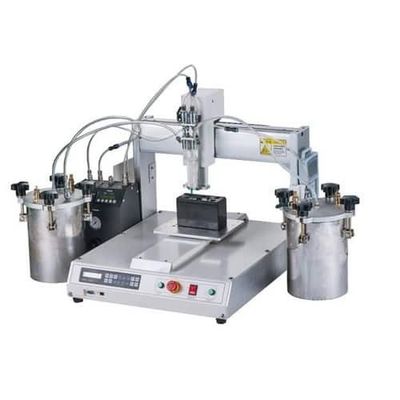

Text Screen PLC Glue Dispensing Machine with 4 Rotary Stations and ±0.02mm Repeat Accuracy for LED Bulb Glue Dispensing

Brand Name:	HSTECH
Model Number:	HS-BD4
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

LED Bulb Glue Dispenser

Power Supply:

AC220V/50~60Hz/200W

Max Dispensing Diameter:

160mm(two Station),110mm(four Station)

Motor Speed:

Max 300mm/s

Repeat Accuracy:

±0.02mm

Warranty:

1 Year

Application:

LED Bulb, LED Par Light

Control Method:

Text Screen

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

Text Screen Glue Dispensing Machine

PLC Glue Dispensing Machine

4 Rotary Stations Dispensing Machine

Product Description

Text Screen PLC Glue Dispensing Machine with 4 Rotary Stations

This advanced 4-station rotary automatic LED bulb glue dispenser is designed for precise adhesive application on LED bulb bases and PAR light housings, ensuring secure connections with consistent quality.

Application

Specifically engineered for applying glue to LED bulb bases and PAR light housings, this four-station rotary dispensing machine features stations distributed at 90-degree intervals on a revolution disc. The system rotates 90 degrees with each cycle, positioning workpieces precisely under the gluing nozzle. An auto-rotation motor ensures uniform glue coating through consistent rotational speed.

Technical Specifications

Model	HS-BD4
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	160mm (two station), 110mm (four station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	420mm × 532mm × 532mm
Weight	35Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0~40℃, Humidity: 20~90%

Machine Features

Four work stations in continuous cycle with designed capacity of 1000-1500 pieces per hour
Integrated workpiece detector for intelligent gluing decisions
Flexible gluing patterns including full circle, single point, or segmented arc
Dual operating modes supporting both four-station and two-station configurations
User-friendly touch screen interface with intuitive button controls
Customizable settings optimized for different adhesive types and performance requirements
