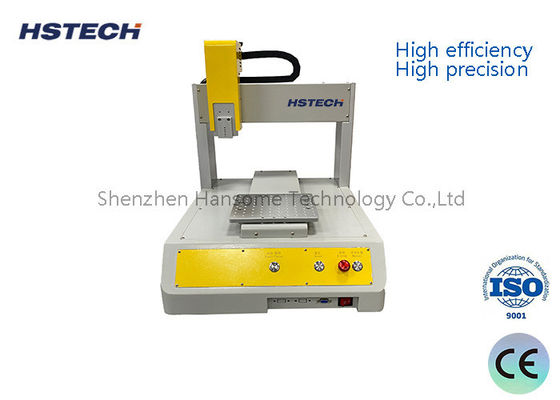

Customizable Glue Mixing Ratio AB Glue Dispensing Machine with ±0.02mm Repeat Accuracy and 300300100mm Working Range

Detail Information

Place of Origin:

China

Certification:

Product Name:

AB Glue Dispensing Machine

Other Name:

4 Axis Glue Dispensing Machine

XYZ Working Range:

300*300*100mm

XYZ Speed:

Max 300mm/s

Glue Mixing Ratio:

1:1-10:1

Dispensing Precision:

Glue Amount±1%, Glue Proportion±1%

Drive System:

Stepping Motor + Timing Belt

Repeat Accuracy:

±0.02mm

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

Product Description

Customizable Glue Mixing Ratio Glue Dispensing Machine for Wall Sphere

Machine Features

Convenient Operation: Equipped with manual programming for intuitive operation and quick mastery of skills
Diversified Trajectories: Supports continuous tween function for points, lines, surfaces, arcs, circles, and irregular curves
Adjustable Parameters: Flexible programming control over gluing amount, speed, dispensing time, and stopping time
Stable & Reliable: Special dispensing controller ensures clean glue with no residue and prevents leakage
Strong Adaptability: Capable of dispensing on interior, exterior walls, facades, gaps, and spherical surfaces
Flexible Configuration: Customizable with fixtures, glue guns, controllers, and heating temperature control devices

Technical Specifications

ITEM	SPEC
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s (based on 1:1 glue proportion)
Dispensing Precision	Glue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range	300300100mm (Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount ±1%, Ratio: ±1%
Operation Method	Auto
Programming	Teach Pendant
Control	Board card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimension (LWH)	716585645mm
Power Supply	220V 50-60Hz 350W

Applications

Sensors, relays, power adapters, electronic toys, and sounders
Electronic components, household appliances, and electric vehicle controllers
Computer digital products, arts and crafts, mobile phone boards, and coil products
Key products, battery boxes, and speaker point bonding
Speaker packaging and dispensing, optical semiconductor packaging
Mobile phone battery and notebook battery packaging
PCB board bonding, COB, IC, PDA, and LCD packaging
IC packaging, IC bonding, chassis bonding, and optical device processing
Hardware parts packaging coating, quantitative liquid filling, and chip bonding
Automotive mechanical parts coating and mechanical sealing
