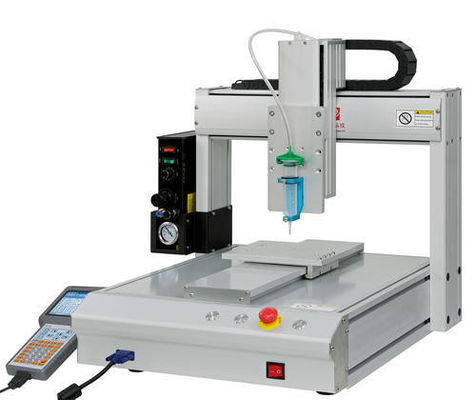

350W Epoxy Glue Dispensing Machine LCD Screen 4 Axis

350W Epoxy Glue Dispensing Machine LCD Screen 4 Axis
350W Epoxy Glue Dispensing Machine LCD Screen 4 Axis 350W Epoxy Glue Dispensing Machine LCD Screen 4 Axis

Large Image :  350W Epoxy Glue Dispensing Machine LCD Screen 4 Axis

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-D441
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 5~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: 4 Axis Glue Dispensing Machine Driven System: Stepper And Timing Belt
XYZ Working Range: 400*400*100mm XYZ Speed: Max 300mm/s
Repeat Accuracy: ±0.02mm Warranty: 1 Year
High Light:

Epoxy Glue Dispensing Machine

,

350W Glue Dispensing Machine

,

4 Axis Steel Glue Dispenser



Teach Pendant Stepping Motor Epoxy Glue Smt Dispenser with Vacuum Device



Machine feature

1. PC computer LCD screen operation, easy to program, easy to learn and understand;
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.

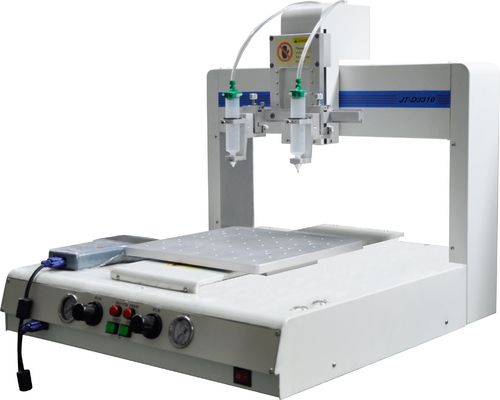

7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;
8. The software has functions such as regional display, translation rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.





Specification



Model HS-D441
Power supply 110V/220V 50-60Hz 350W
Glue Mixing Ratio 1:1-10:1/Customizable
Dispensing Speed 10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range 400*400*100mm(Z axis can be rotated)
XYZ Speed Max 300mm/s
Drive System Stepping Motor + Timing Belt
Repeatability ±0.02mm
Pattern Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision Amount±1%, Ratio:±1%
Programming Teach Pendant
Control PLC
Leak-proof Function Valve with Vacuum Device
Document Support CAD, CorelDRAW
Weight 40kg
Dimension(L*W*H)
616*685*645mm
