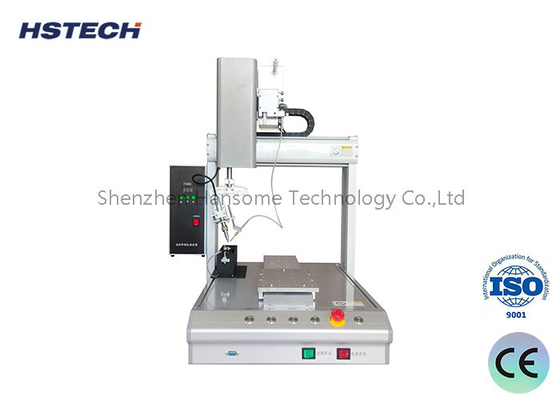

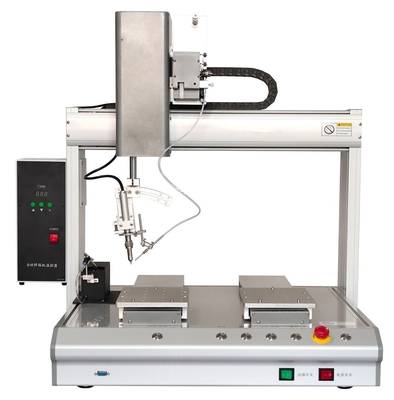

Product Name: Tabletop Soldering Machine Other Name: Automatic Soldering Robot
Working Platform: Single Platform Soldering Tip: Single Tip
Rotation: 360 Degree Voltage: AC220V/110V
Usage: Pcb Soldeing,Welding,Circuit Board Soldering Warranty: 1 Year

Manual Programming Windows Based 4 Axis Solder Robot



Introduction



This automatic soldering machine we called it 4 axis automatic soldering machine, X,Y,Z and 360 degree Rotation axis, the machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering. This machine mostly use for add tins on the PCBA, or solder cables, save more labor and improve the production efficiency.



Features



1, 4 Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective,

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4,
Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld teaching pendant, the programming is simple and easy to learn.



Specification



Model HS-S331R
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 300*300*100mm
R axis 360 degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension

520*585*800mm
