Detailed Product Description

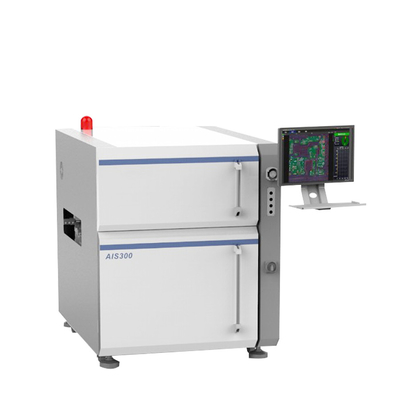

Product Name: Inline THT DIP AOI After Wave Soldering Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.3 - 5mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Total Power: 2600W Power Supply: AC220V
Air Pressure: 4-6bar Mounting Accuracy: ±0.01mm
Type: Automatic Weight: 30KG



Quick Installation Fast Inspection Speed Remote Assistant Inline THT DIP AOI Before Wave Soldering



​Specification

Model AIS300 AIS301
PCB Size 50x50mm~430x380mm 50x50mm~350x350mm
Thickness 0.3~7.0mm
Warping extent <4mm
Component height Top 150mm, bottom 25mm
Camera 5MP,color,CCD
Light source RGB
FOV 45*37mm
Resolution 20um
Inspection
Mounting components defect Missing,rolling,offset,damage,skew,redundant,dirty.
Solder defect Excess,insufficient,bridge,no foot,missing solder,non-wetting.
Other function Bar-code,QR cod,OCR
Speed 0.23sec/fov 0.25sec/fov
Software/Hardware
Operation system Ubuntu 14.04 LTD 64bit
Function Remote control, Gerber file importing, training tool for new models
Industrial PC CPU intel i5,Independent Graphics Card,12G DDR,256SSD
Display 22 inch FHD LCD
Motion High accuracy linear actuator
Power supply AC220V,1KW
Air pressure >0.5Mpa
Dimension(L*H*W) 1100*1630*1350mm 1100*1280*1300mm
Net Weight 800kg 700kg



Features

A, Core algorithm—— Convolutional Neural Network Algorithm

Application and Innovation in industry

Human-like inspection

Better compatibility

Training algorithm model of super large sample set

High generalization

Super detection ability, lower false positive

Supporting user self-training model

B, High wear resistance

C, Large inspection area and high compatibility

D, High inspection rate and low false positive rate.

E, Marble base, more stable.

F, Dual XY linear actuators, high speed, high accuracy

Application



This inline THT AOI used after wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
