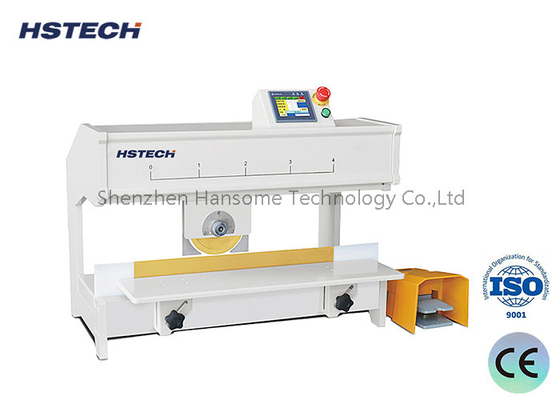

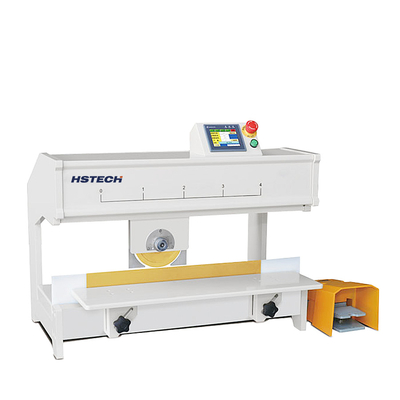

Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator

Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator

  • Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator
  • Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator
  • Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator
Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-VM-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Blade Moving V-cut PCB Separator Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.6-4.0mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Power Supply: AC220V
Air Pressure: 4-6bar Speed: 200-300pcs/min
Type: Automatic Weight: 220/240KG



Economiccut Rapidly Regardless Of The Quantity Blade Moving V-Cut PCB Separator



Technical Details

Model VM-400 VM-600
Machine Dimension 420x520x860mm 620x720x1060mm
Voltage 220V 50/60Hz 220V 50/60Hz
Max Cutting Length 400mm 600mm
PCB Thickness 0.8~3mm 0.8~3mm
Separation speed 600mm/second 600mm/second
Separation type Circular blade/linear blade Circular blade/linear blade
Components height 0~70mm 0~70mm
Working temperature 30~55 30~55
Weight 50kg 60kg

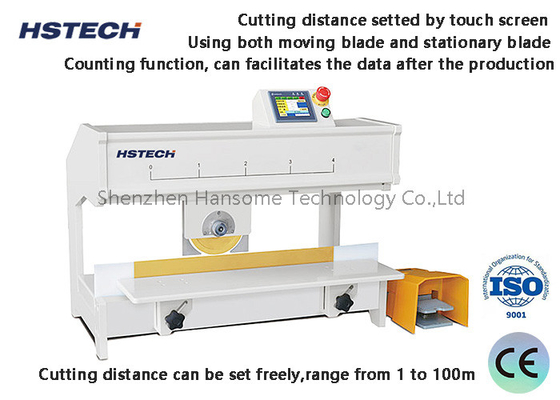

Features



1, It can cut rapidly regardless of the quantity, very economic.

2, Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.

3, Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.

4, PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.

5, Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.

6, The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.

7, The starting cutting position can be set freely, which can ensure the long lifespan.

8, This machine equipped with counting function, can facilitates the data after the production.
