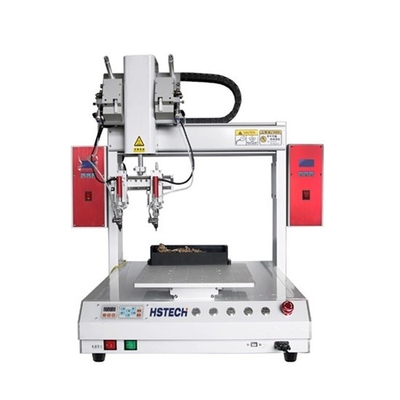

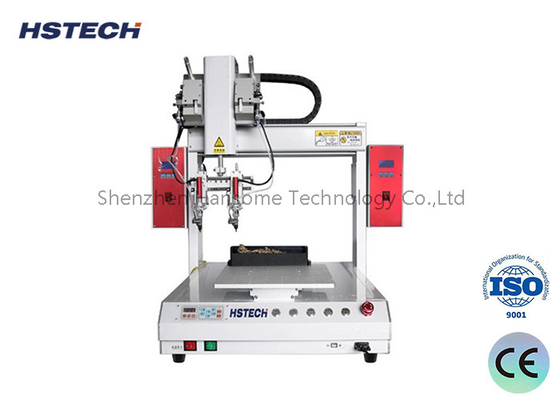

Double Soldering Tip Single Platform Automatic Soldering Machine

Double Soldering Tip Single Platform Automatic Soldering Machine

  • Double Soldering Tip Single Platform Automatic Soldering Machine
  • Double Soldering Tip Single Platform Automatic Soldering Machine
  • Double Soldering Tip Single Platform Automatic Soldering Machine
Double Soldering Tip Single Platform Automatic Soldering Machine
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SD441
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam inside
Delivery Time: 7~10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Contact Now
Detailed Product Description
Product Name: Automatic Soldering Machine Other Name: Automatic Soldering Robot
Platform: Double Y Platform FIxtures: Customized
Soldering Object: Solder Wire / Tin Condition: New

Double Soldering Tip Single Platform Automatic Soldering Machine



Introduction



This automatic soldering machine is double soldering head with 400mmx400mm moving range, this machine is suitable for difficult process and soldering processing, especially suitable for welding of mixed circuit boards, heat sensitive components and sensitive devices in SMT back-end process



Specification



Model HS-SD441
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 400*400*100mm
R axis none
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension 515*585*800mm

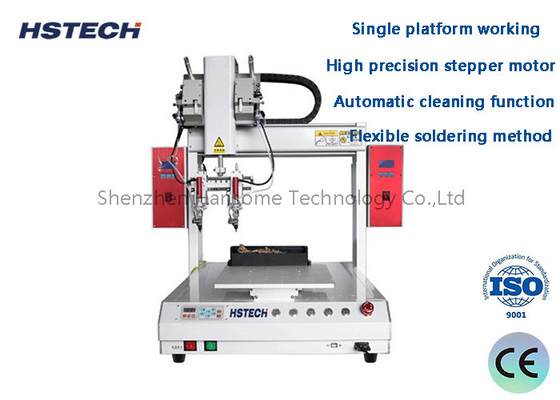

Features



1, Double soldeirng tip, single platform working, moving range 400x400mm, can welding dead corner.


2, Flexible soldering method, spot soldering, drag soldering all compatible.



3, The whole machine is made of aluminum, no deformation, no rust, stable operation.



4, The working program can perform point-to-point, block-to-block copying and shorten programming time.



5, The soldering iron without nitrogen, very safety and environment protective.



6, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.


7, Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.



8, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the soldering iron.
