Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-310 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 7~9 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | Guillotine PCB Depaneling Machine | Warranty: | 1 Year |
---|---|---|---|
Control: | Touch Screen | PLC: | MITSUBISHI |
Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
Material: | Aluminum Alloy | Condition: | New |
Signal: | SMEMA | Application: | Electronic Assembly |
Color: | Silver | Control System: | PLC |
OEM/ODM: | Available | Power Consumption: | 200W |
Power Supply: | AC220V | Air Pressure: | 0.5-0.6MPa |
Speed: | 200-300pcs/min | Type: | Automatic |

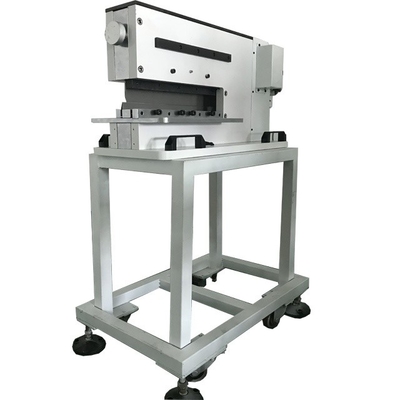

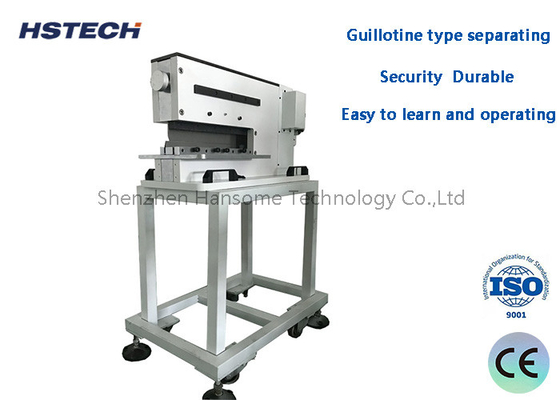

Security Durable Easy To Learn And Operating Guillotine PCB Depaneling Machine
Specification
Model | HS-310 |
Cutting length | 1-360mm(larger size need customized) |
Machine size | 700*3200*400mm |
power | 110V/220V 50/60Hz |
Air pressure | 0.5~0.8Mpa |
Cutting Width | 4-100mm |
Blade Size | 360*43.5*6mm |
Air consumption | 200-400(L/min) |
Weight | 130kg |
Feature
1,Guillotine type separating,low force stress,high quality cutting.
2, Suitable for all kinds of material board,also can cutting high hardness,aluminum,and cooper board.
3,Security: small guillotine only available for board feeding,ensure the safety of the operator.
4,Very easy to learn and operating.
5, Durable, using import high quality steel made cutting tool.
6,Guillotine cutting speed is relative slow, the cutting speed can be improved after the operator is well-skilled.
