| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-CM-610 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Germany Sycotec Spindle Combined Automatic PCB Router | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Color: | Silver | Control System: | PLC |
| OEM/ODM: | Available | Power Consumption: | 200W |
| Power Supply: | AC220V | Type: | Automatic |

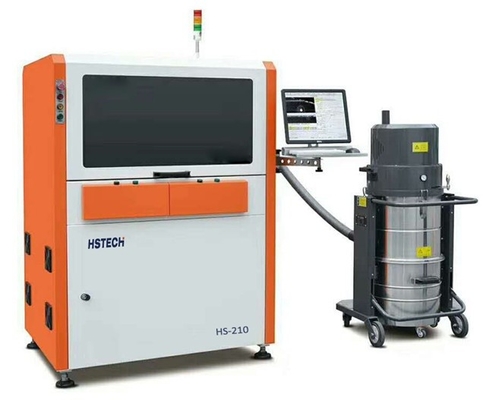

Germany Sycotec Spindle Combined Automatic PCB Router
Features
Milling type PCB Router with high precision and high cleanliness,dual parallel work platform and single pindle
1, Using high speed Germany Sycotec spindle.
2, Low footprint,drawer type platform is designed to avoid the pollution of cleanliness room.
3, Top side dust collection with higher efficiency than the bottom side,and lower noise.
4, Dual platform design, easy to operate and maintenance.
5, Application for 350*350mm pcba, bigger size can be customized.
6, Upgrade with robot to realize inline function.(option)
Specification
| Model | CM-610 | CM-610max | ||||||||
| Max pcb size | 350x350mm | 450x450mm | ||||||||
| Min pcb size | 5x5mm | |||||||||
| PCB thickness | 0.4~6mm | |||||||||
| Operation table height | 850mm | |||||||||
| Feeding method | Manual feeding and release | |||||||||
| PCB Positioning | Magnetic thimble or jig | |||||||||
| Cutting Spindle speed | 5000-60000rpm | |||||||||
| Cooling type | Self cooling | |||||||||
| Kit break inspection | Yes | |||||||||
| Cutting speed | 1-100mm/s | |||||||||
| Cutting accuracy | ±0.05mm | |||||||||
| Router kit mode | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | |||||||||
| Repeat accuracy | ±0.02mm | |||||||||
| Coordinate moving speed | 1000mm/s | |||||||||
| Programming | Editing program through visual system | |||||||||
| Air supply | 5-8KG/cm³ | |||||||||
| Power supply | AC380V,50/60Hz,3KW | |||||||||
| Machine size | 1250x1000x1650mm | 1350x1100x1650mm | ||||||||
| Weight | 900kg | |||||||||
