Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine

Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine

  • Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine
  • Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine
  • Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine
Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-RM-F500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Tabletop PCBA Router Machine Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine



Machine introduction

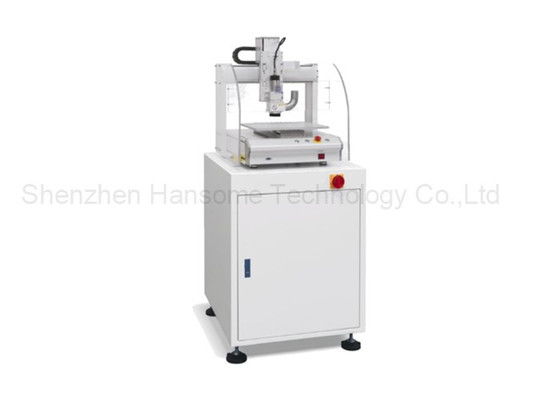

This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.

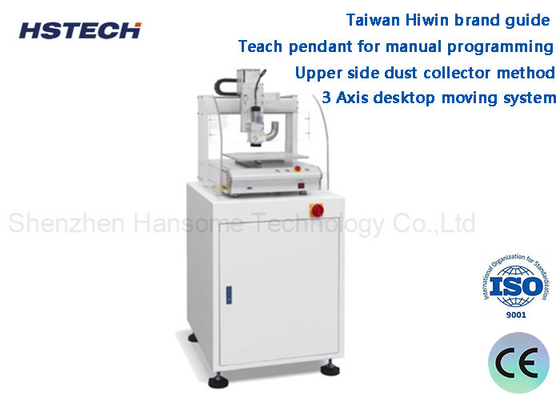

Features



1, 3 Axis desktop moving system.



2, Teach pendant for manual programming.


3, High speed routing spindle, speed at 20000~40000rpm.


4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.



5, Upper side dust collector method, make sure the platform clean.

6, Suitable for depaneling straight line, arc, and circular connectted boards.


7, Enclosed operating room, security and low noise.



Specification
Model RM-F500
Structure Single Spindle,single platform
Efficienty cutting length 270*220mm(x*Y)
Cutting types Straight line, arc, circular
Moving speed X/Y/Z axis 300*250*90mm/s
Dust Collection method Upper collection
Spindle 20000~40000rpm
Routing Spindle Max40000rpm
Cutting speed 1-100mm/s adjustment
Cutting accuracy ±0.03mm
Repeat accuracy ±0.01mm
Programming Teach box
External connect USB
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply 220V/110V,50/60Hz
Board thickness 0.8-3mm
Dust collector size 600*500*500mm
Dust collector power 750W,1HP



About Packaging
Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine 0
Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine 1
Taiwan Hiwin Brand Guide 3 Axis Desktop Moving System High Speed Routing Spindle Tabletop PCBA Router Machine 2
