SMT Production Line 90° PCB Loader Machine

SMT Production Line 90° PCB Loader Machine

  • SMT Production Line 90° PCB Loader Machine
SMT Production Line 90° PCB Loader Machine
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Multiple Magazine PCB Loader Other Name: SMT Board Loading Machine
Power Supply: AC110V/220V,50/60Hz Air Pressure: 4-6 Bar
PCB Thickness: Min 0.4mm Pitch Selection: 10-40mm
Conveyor Speed: 0.5-20M/min Or Customized Communication: SMEMA

SMT Production Line 90° PCB Loader Machine​

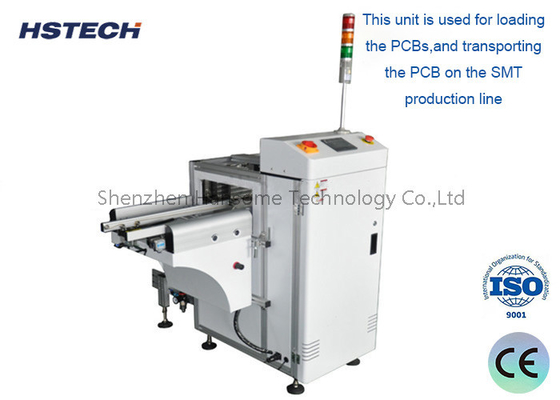

This unit is used in the beginning of SMT production line for tranporting PCBs from magazines to the line, it's a 90 degree type PCB loader,

its special for saving the space of factory.




1, Module right angle (90 degree) design.

2, Very short 1200mm length, optional shorter 900mm machine length.

3, Flexible Collapsible PCB pusher.

4, 3 magazines available.

5, Smooth and parallel width adjustment.

6,SMEMA compatible.




Product name 90 degree PCB Loader Machine
Machine length 1200mm or 900mm
Transport height 910±30mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Magazine qty 3 pcs
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Light status 3 color display
Signal SMEMA



SMT Production Line 90° PCB Loader Machine 0
