CE Listed PCB Magazine Loader with No PCB Breakage Guaranty for 250~460mm Width

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

250mm / 330mm PCB Loader Equipment

Other Name:

Magazine Loader

Transport Height:

920±20mm

PCB Loading Time:

Approx 6 Seconds

Magazine Replace Time:

Approx 30 Seconds

Transportation Direction:

L~R, Or R~L

Operation:

Front Operation

PCB Thickness:

Min 0.4mm

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Highlight:

CE Listed PCB Magazine Loader

No PCB Breakage Guaranty PCB Loader

250~460mm Width Magazine Loader

Product Description

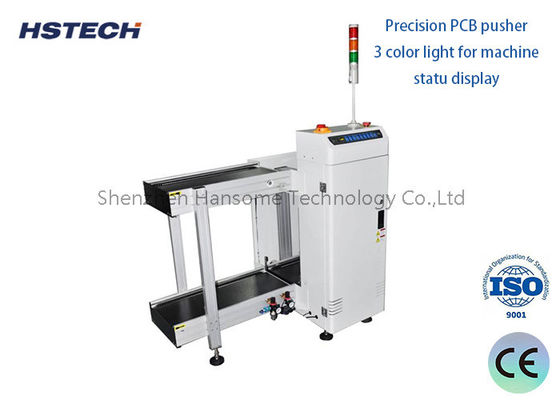

CE Listed PCB Magazine Loader with No PCB Breakage Guarantee

This advanced PCB Magazine Loader is CE certified and comes with a no PCB breakage guarantee, ensuring reliable and damage-free operation for your SMT production line.

Key Features

Special aluminum profile guide rail with houndstooth plastic chain
90W brake motor drive utilizing ball screw for magazine vertical movement
Pneumatic clamp structure for secure handling
Standard configuration with 3 magazines (1 top, 2 bottom)

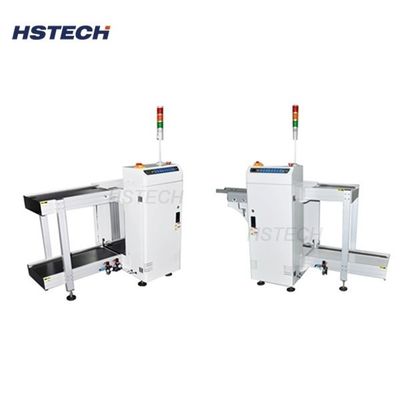

Bi-directional operation: Right to Left or Left to Right
Adjustable lifting platform pitch: 10, 20, 30, or 40mm
PLC programmable controller for precise operation
Automatic loading functionality
Pneumatic components with screw-adjusted push plate cylinder positioning

Technical Specifications

Model	HS-LD330
Product Name	PCB Magazine Loader
Transport Height	920±20mm
PCB Loading Time	Approximately 6 seconds
Magazine Replace Time	Approximately 30 seconds
Transportation Direction	L~R or R~L
Operation	Front operation
Track Fixed Side	Front side (or specify)
Power Supply	220V, 50/60Hz, ±10%
Air Pressure	4-6bar
PCB Thickness	Minimum 0.4mm
Magazine Quantity	Upper side: 1 pc, Bottom side: 2 pcs
Pitch Selection	1-4 (10mm pitch)
Conveyor Speed	0.5-20M/min or customized
Signal	SMEMA

Model Selection Guide

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Effective PCB Length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine Size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

Application

This PCB loading machine is designed for use at the start of SMT production lines. It efficiently pushes PCBs from magazine racks and transports them to downstream equipment in the production line, ensuring smooth and continuous operation.

About HanSome Technology

Shenzhen HanSome Technology Co., Ltd (HSTECH) was established in 2012 by professional engineers with extensive experience in EMS companies. We specialize in PCB handling equipment, PCB depaneling machines, and SMT cleaning machines. HSTECH maintains both a professional technical R&D team and an experienced marketing team that continuously researches industry trends to develop cost-efficient products that help customers save costs, reduce labor requirements, and improve production efficiency.

HSTECH operates with the goal of "High quality and Smart" manufacturing, based on our "Quality-Oriented and Customer-Oriented" philosophy. We combine industry expertise with smart technology to support smart factory initiatives. Our after-sales service is built on responsibility - we respond immediately to quality feedback and provide ongoing support to our customers.
