High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine

Certification
China Shenzhen Hansome Technology Co., Ltd. certification
China Shenzhen Hansome Technology Co., Ltd. certification
Customer Reviews
HSTECH's equipment totally fit our requirement, the machine working stable and no errors, it help us a lot during the electronic production, thanks, we like it!

—— Bradly

The machines assemblyed and packed very well,easy installation under the particular directions, more important the working efficiency and accuracy is over expected. We are happy with these equpiments, we will try new cases for you.

—— Jason

The cleaner are working very well, thanks for the service!

—— Emma

The parts we purchased with very good quality, your stock parts item is exhaustive and the service reaction is fast, it's really help.

—— Eduardo

I'm Online Chat Now

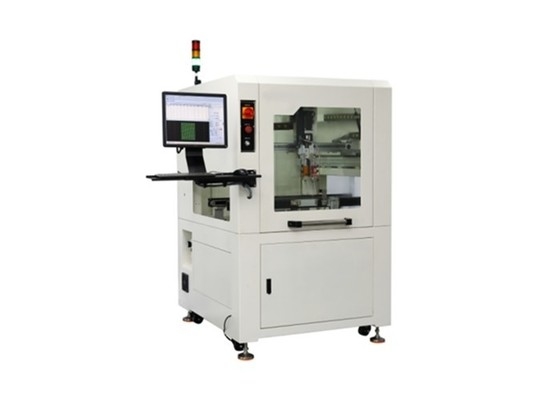

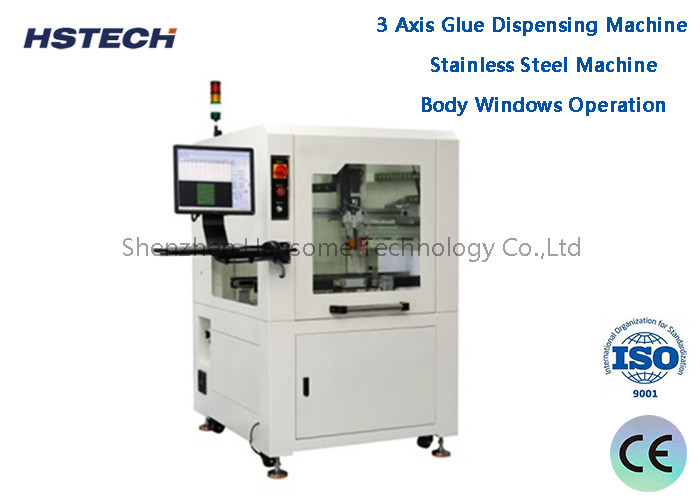

High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine

High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine
High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine

Large Image :  High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-VD331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Visual Glue Dispensing Machine Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine


Specification

Model HS-VD331
Voltage AC110V/220V,50/60Hz,Meanwell brand
Air pressure 0.5-0.7Mpa
Light source LED source
X/Y/Z working range 400mm*300mm*2
XYZ speed 1000mm/s
Y platform 190*150mm
Repeat accuracy 0.02mm
Gule viscosity range max≤5000LPS
Motor Stepper motor
Driven system Timing blet for X/Y, Z axis screw
Document support CAD,CorelDRAW
Loading capacity X/Y:10kg,Z:5kg
Linear Guide CSK(Taiwan brand)
Photoelectric switch PEPPERL+FUCHS(Germany brand)
Operation system Windows
Gross weight 600kg



Application

Epoxy Glue Dispensing Machine Teach Pendant Stepping Motor With Vacuum Device 0

High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine 1



About Packaging
High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine 2
High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine 3
High Speed PC Control LCD Screen High Accuracy Visual Glue Dispensing Machine 4
