Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal

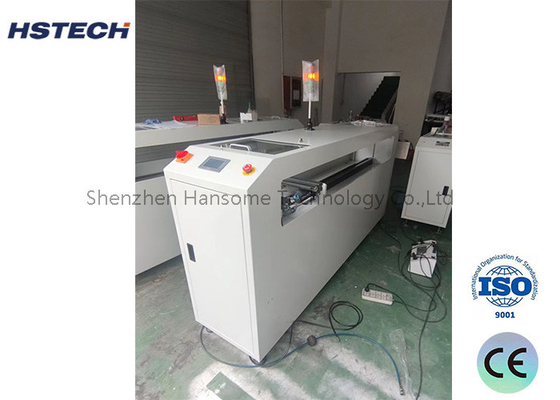

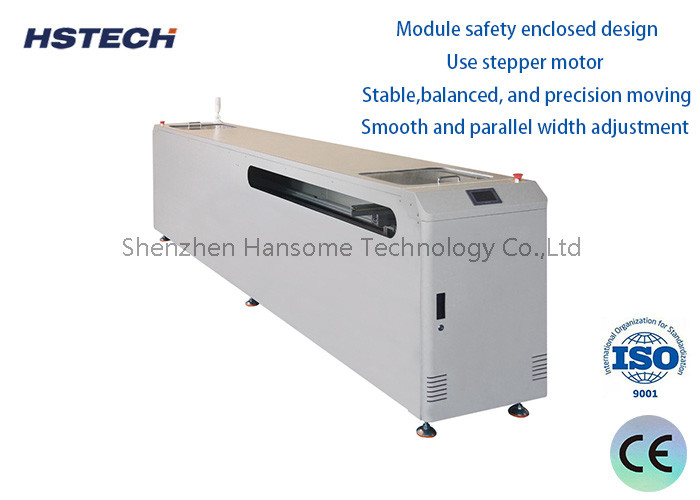

Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal

  • Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal
  • Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal
Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-500SC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package,with foam
Delivery Time: 10~12 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Shuttle Conveyor Color: White
Power Supply: Meanwell Driver,AC100-240V PLC: MITSUBISHI
Relay: Schneider Optoelectric Switch: OMRON
Singal: SMEMA

Automatic SMT transfer machine PCB circuit board single and double track conveyor connection transfer machine



This machine also called PCB translation machine,which is used for transporting boards from one line into two lines or vice versa,the orientation of the board won't change during traversing.



Specification



Model HS-500SC
PCB dimension (50*50)~(500*460)
Power supply AC100-240V meanwell brand
Transport height 900±20mm
Transport direction L to R, or R ro L,(optional)
PCB thickness Min 0.4mm
Machine dimension 600*(1500~4800)*1100mm
Weight 150~350kg



Features



1, PLC control system.

2, With the function for transports the boards from 1 line to 2 lines, or combined 2 lines to 1 line, and by-pass function.
3, Using stepper motor translation accurate alignment
4, Buffering slow down design more stable and precision
5, Width adjustable, enclosed type case for safety
6, Standard SMEMA



Advantages



1.Control system:Panasonic PLC and LEF intermediate relay control ensure stable operation. True color touch screen, intelligent control, multiple modes to choose from.

2.Smooth operation:Adopting Taiwan's Shangyin linear sliding rail and imported steel wire synchronous belt, the vehicle runs smoothly with low noise and no vibration. Stepper motor drive, precise positioning.

3.Transport device:Double stepper motor and anti-static wear-resistant flat belt, stable and balanced width adjustment device, adjustable load distance can be set freely.

4.Standard signal interface:SMEMA interface, support with the upstream machine, downstream machine online connection.

5.Import/export sensor switch:Adopting Panasonic sensor, fast response speed, long detection distance, high resolution, fast and accurate.

6.Emergency stop for rear section:Alarm light, dust-free cover can be opened.

7.Plug in transfer machine:Chain transmission, with greater load-bearing capacity, multiple working modes such as two in and one out, four in and two out, etc.



About Packaging

Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal 0

Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal 1

Automatic Shuttle Conveyor Single Lane Dual Shuttle made of thickened sheet metal 2
