| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-310 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Low Force Stress PCB Depaneling Machine | Other Name: | Pneumatic PCB Separator |
|---|---|---|---|
| Air Pressure: | 0.5-0.8Mpa | Voltage: | AC220V/110V |
| Pcb Thickness: | 0.2 To 5.0mm | Pcb Length: | 0 To 360mm |

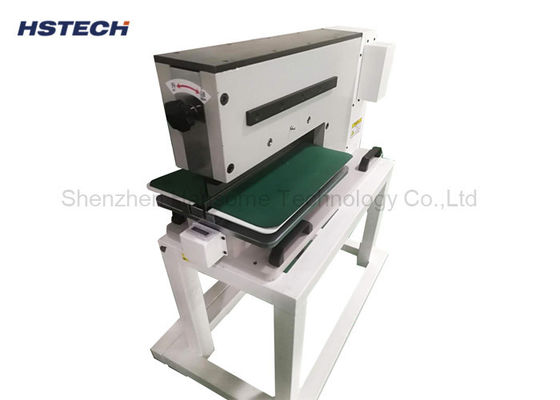

Ultra Low Force Stress at 500-600uE Low Force Stress PCB Depaneling Machine
Introduction:
This machine called pneumatic pcb separating machine, also called guillotine type PCB depaneling machine, it's using dual guillotine type blade as the cutting tool, at the same time powered by air pressure to finish the depaneling, it has much better performance than the blade moving pcb separator.
Features:
1, Suitable for all kinds of PCB boards with V-slot.
2, Guillotine type blade separating, ultra low force stress at 500-600uE, smooth and flat, no bent and glitch.
3, Penumatic and electricity driven combined.
4, Security: small guillotine only available for board feeding, ensure the safety of the operator.
5, Easy maintanance, operator can handling the machine with easy training.
6, Durable, using import high quality steel made cutting tool.
Specification:
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
