| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-320 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Material: | Sheet Metal | Voltage: | AC110V/220V |
|---|---|---|---|
| Blade: | Guillotine | Switch: | Feet Switch |
| Suitables: | All Boards With Or Without V-groove | Movment And Siting: | Whreel And Fit Cup |

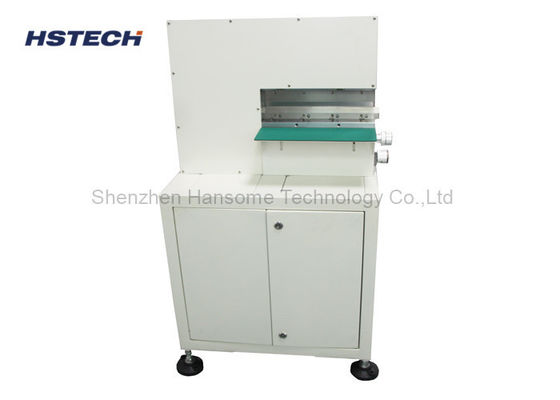

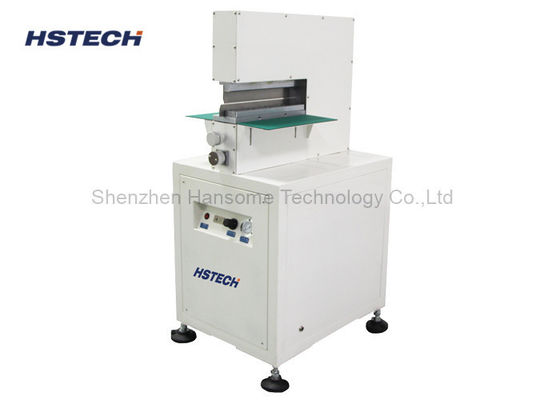

Pneumatic Power Low Cutting Force Stress V Cut PCB Depanelizer Sheet Metal
Application:
This machine is a ultra low cutting force stress Pneumatic PCB separator, widely used to all PCBA boards.(with V-groove or without)
Features:
1, Double linear blade cutting,suitable for smd thin board,aluminum board,and all kinds of thickness boards,cutting range less than 2mm, no safety problem.
2, Lower the inner stress below 500uE,protect the components from damage.
3, Not friction cutting,no blade metal residue.
4, Pneumatic power, no cutting stress.
5, Both upper and down blade can be adjustable,use the knob to adjust the gap based on the pcb thickness,fit the V-groove thickness.
Specification:
| Model | HS-320 |
| Efficient cutting length | 350mm(larger size need customized) |
| Machine size | 650*500*1130mm |
| Air pressure | 0.5~0.7Mpa |
| Upper components height | 39mm(max) |
| Down components height | 19mm(max) |
| Pcb thickness range | 0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove) |
| Air consumption | 200-400(L/min) |
| Weight | 200kg |
Product detail:
