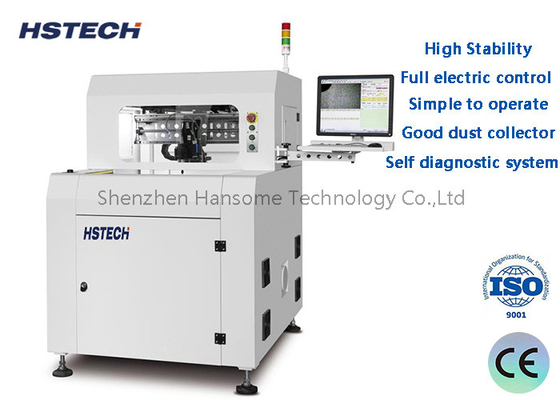

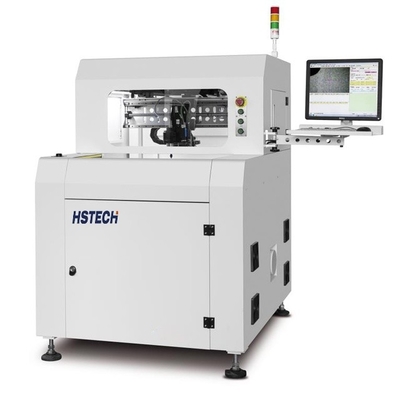

High Stability Touch Screen Automatic Curve PCB Router Using Sycotec Spindle To Cut High Density PCBA

Brand Name:	HSTECH
Model Number:	HS- RM-288
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Curve PCB Router Using Sycotec Spindle

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Signal:

SMEMA

Power Supply:

AC220V

Type:

Automatic

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

High Stability Touch Screen Automatic Curve PCB Router Using Sycotec Spindle To Cut High Density PCBA

Introduction:

PCB Router, or called Automatic PCB cutting machine, with high speed Germany Sycotec spindle driving milling kit to cut high density PCBA and other material substrate.

Features:

Full electric control, no air pressure requirement.
High Stability, easy to maintenance.
Simple to operate, short change over time.
Design for middle and small size PCBA.
Good dust collector make sure the cleaness during the operation.
Allow the milling kit cutting setup by stages greatly reduces the cost for consumbles.
The milling cutter is driven by high speed spindle with the advantages of a reduced cutting force,high accuraty, low noise, and suitable for all shape pcba, like round,straight line, L or U type,squres and arc shapes.
The self diagnostic system allows easy troubleshooting of malfunction during production and reduce downtime.

Specifications:

Model	RM-288	RM-388	RM-888
Structure	Single Spindle,dual work platforms	Single Spindle,dual work platforms	Single Spindle,dual work platforms
Machine Size(mm)	100012001550	100012001550	120014001550
Gorss weight	700kg	700kg	900kg
Dust collector size(mm)	6256001600	6256001600	6256001600
Dust collector power	3HP/2.2kw	3HP/2.2kw	5HP/3.5kw
Dust collector Weight	130kg	130kg	130kg
Collection method	Bottom collection	Bottom collection	Bottom collection
Work platform size	300*400mm	300*400mm	410*510mm
Platform driving type	Double rotary platform,precision slicer with 3phase motor inverter
Driving system	X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter
Routing Spindle	5000~50000rpm,auto cooling	5000~60000rpm,automatic cooling
Cutting speed	1-100mm/s
Cutting accuracy	±0.05mm
Repeat accuracy	±0.02mm
Axis moving speed	800mm/s
Z axis moning method	Screw driven,dual guide
Router kit	milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Tool lifespan	Software program control
Active protective function	safty light curtain
Security door	manual door
Error alaum	Yes
Programing method	Self programing,camera controlled by keyboard and mouser
