High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy

High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy

Brand Name:	HSTECH
Model Number:	HS-S5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Tabletop Soldering Robot

Other Name:

Robotic Soldering Machine

Working Station:

Dual Working Station

Soldering Head:

Single Tip

Rotation:

360degree

System:

Manual Programming, Fast Swtiching

Packaging Details:

Wooden package

Supply Ability:

200 pcs per month

Product Description

High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy

Features

1. High power heating controller ensures the tip temperature to reach 350°C within 30 seconds.
2. With the sleeve design, the soldering tip can be replaced quickly and easily.
3. Intelligent solder feeding mode, parameters can be set freely.
4. Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
5. With the function of spot welding, drag soldering, automatic cleaning and etc.
6. With the function of position correct, position copy, array, auto-fixed location and etc. This machine can be easily to operate.
7. All kinds of parameters can be set to make sure the high welding quality.

Specification

Model	HS-S5331R
Voltage	AC110V/220V,50/60Hz
X/Y1/Y2/Z working range	500300300*100mm
R axis	360 degree
X/Y1/Y2/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Manual programmin with teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	85kg
Machine dimension	680585800mm

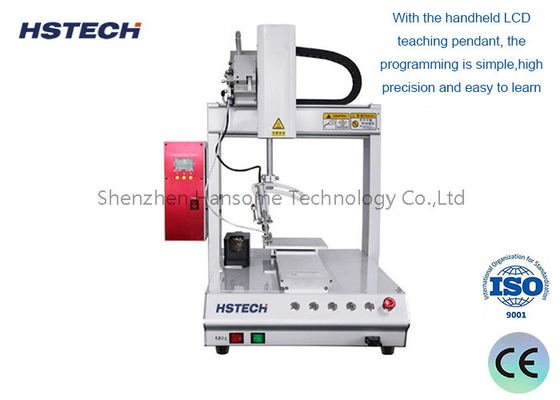

High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy 0

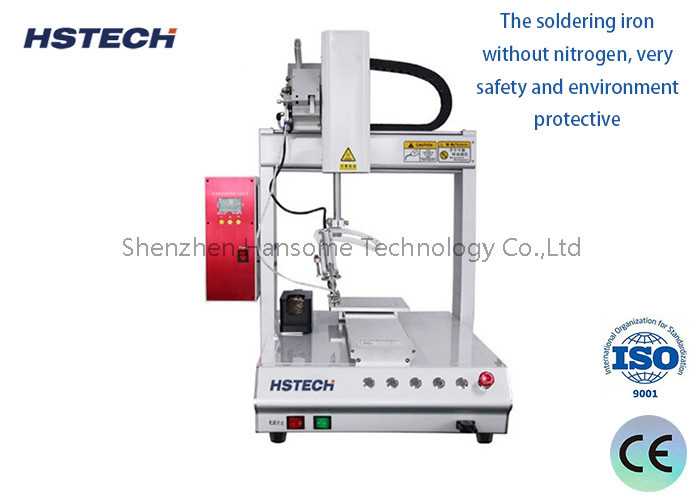

High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy 1

High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy 2

High Precision Automatic Soldering Robot with ±2℃ Temp Accuracy 3
