Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor with ESD Flat Belt

Brand Name:	HSTECH
Model Number:	HS-460-CY
MOQ:	3 sets
Price:	Negotiable
Payment Terms:	T/T,Western Union,D/P
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Color:

Blue,Grey,white

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden box

Supply Ability:

500 pcs per month

Highlight:

Stainless Steel PCB Transporting Conveyor

Hand Crank Width Adjustable SMT Conveyor

ESD Flat Belt Link Conveyor

Product Description

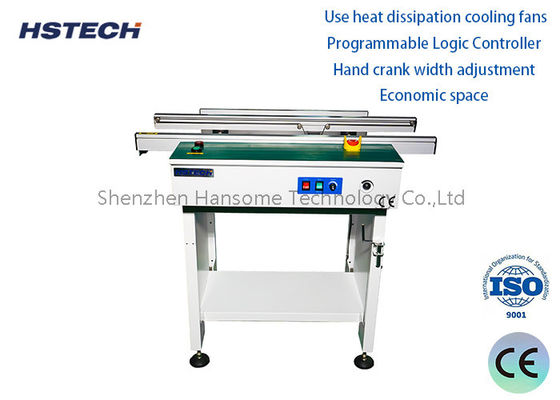

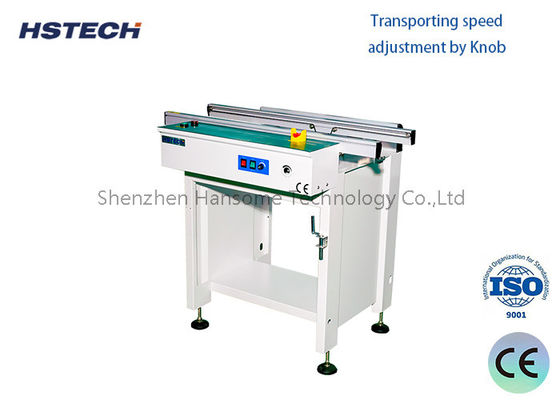

Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor

This stable stainless steel manual conveyor system is specifically designed for transferring printed circuit boards (PCBs) throughout production lines with precision and reliability.

Key Features

Precision M-screw mechanism with manual guide rail width adjustment for smooth rail movement
Imported round special belt with patented tracks to minimize PCB drop issues
Aluminum alloy construction for enhanced stability and extended lifespan
Customizable sizing to meet specific production requirements
SMEMA compatibility for seamless integration with automated systems

Technical Specifications

Model	HS-C600/HS-C1000
Power Supply	AC220V or AC110V 50/60Hz
PCB Size	50×50mm to 500×390mm
Width Adjustment	Hand crank operation
PCB Direction	Left to right or right to left
Transmission Height	900 ± 20 mm
Transmission Speed	0.5-20 meters per minute adjustable
Track Fixed Side	Front side fixed (back side fixed optional)
Machine Length	0.5M/0.6M/0.8M/1M/1.5M
Options	Light, Fan, Magnifying, Cover, Inspection
