Double Platform PCB Depaneling Router Machine with ±0.01mm Repeat Accuracy and 300*350mm Working Platform

Brand Name:	HSTECH
Model Number:	RM-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Router Machine

Platform:

Double

Working Platform:

300*350mm

Repeat Accuracy:

±0.01

Cutting Accuracy:

±0.03

Machine Dimension:

1200*1050*1440mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

20 sets per month

Highlight:

Double Platform PCB Router Machine

±0.01mm Repeat Accuracy PCB Depaneling Router Machine

300*350mm Working Platform Offline PCBA Router Machine

Product Description

RM-F328 PCB Cutter Machine with Double Platform

High-speed curve PCB cutting machine designed for SMT production lines, featuring double platform configuration for accurate and efficient depaneling.

Machine Overview

PCB depaneling machines, also known as singulation systems, separate printed circuit board assemblies from large fabricated panels into individual PCB units. These machines streamline production processes, reduce component damage risk, and ensure clean, precise separation.

Technical Specifications

Model	RM-F328
Structure	Single Spindle, Double Platform
Effective Cutting Length	300 × 350mm
Cutting Types	Straight Line, Arc, Circular
Moving Speed	X/Y Axis: 1000mm/s, Z Axis: 500mm/s
Dust Collection Method	Upper Collection
Spindle Speed	40,000 - 60,000 RPM
Routing Spindle	Maximum 60,000 RPM
Cutting Speed	1-100mm/s Adjustable
Cutting Accuracy	±0.03mm
Repeat Accuracy	±0.01mm
Programming	Colorful CCD
External Connection	USB
Router Kit	Milling Cutter, φ0.8-φ3.0 Left Rotation, Shank Tungsten Steel
Power Supply	380V
Machine Power	2000W
Dust Collector Size	600 × 470 × 730mm
Dust Collector Power	2.2Kw, 380V
Dust Collector Air Pressure	4-6 KG/cm³
Security Door	Manual Door
Error Alarm	Yes
Programming Method	Self Programming, Camera Controlled by Keyboard and Mouse

Key Features

Double platform design for continuous operation
High-precision cutting with ±0.03mm accuracy
Versatile cutting capabilities for straight lines, arcs, and circles
Integrated dust collection system
Advanced CCD programming with camera control
High-speed operation with rapid axis movement

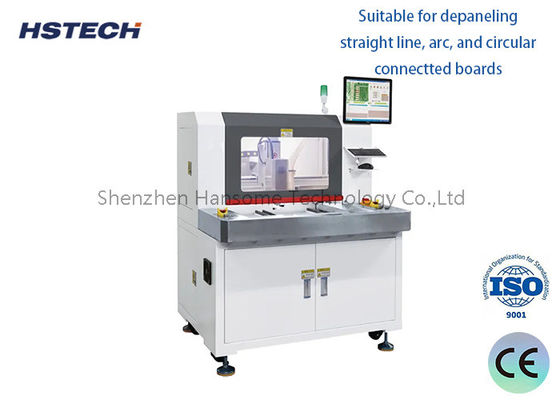

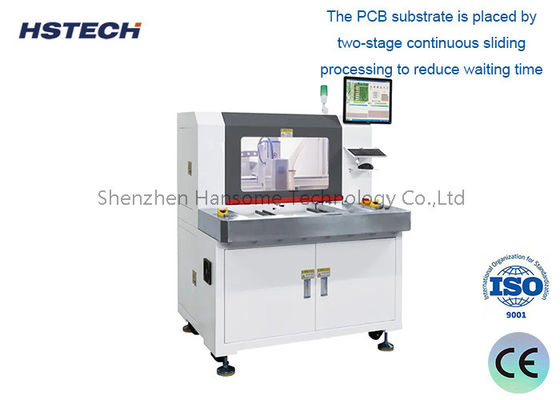

Machine Image
