60000rpm Spindle PCB Router Machine for Depaneling with ±0.01mm Repeat Accuracy and 300*350mm Working Platform

Name: 60000rpm Spindle PCB Router Machine for Depaneling with ±0.01mm Repeat Accuracy and 300*350mm Working Platform
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: RM-F550
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	RM-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Router Machine

Platform:

Double

Working Platform:

300*350mm

Repeat Accuracy:

±0.01

Cutting Accuracy:

±0.03

Machine Dimension:

1200*1050*1440mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

20 sets per month

Highlight:

60000rpm Spindle PCB Router Machine

±0.01mm Repeat Accuracy PCB Depaneling Router

300*350mm Working Platform Offline PCBA Router Machine

Product Description

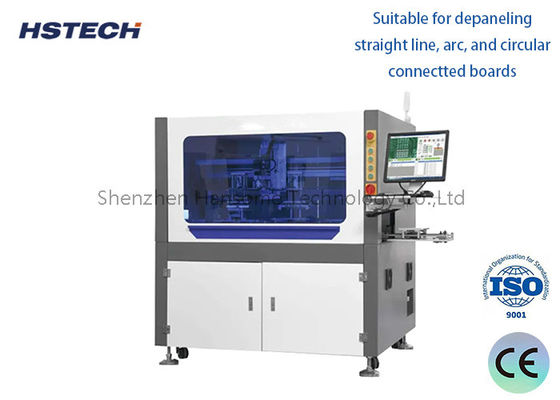

PCB Router Machine for Depaneling Straight Line, Arc and Circular Connected Boards

PCB Router with 60000rpm Spindle

High-performance depaneling machine designed for separating printed circuit board assemblies (PCBA) into individual boards with precision and efficiency.

Machine Introduction

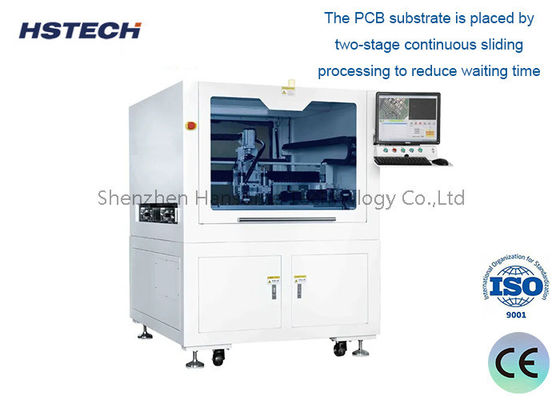

The RM-F550 Router Machine is a newly developed solution for depaneling complete printed circuit board assemblies. Built on a stable platform measuring 300×350mm, it ensures exceptional working precision. An optional larger platform size of 400×600mm is available for expanded applications.

This machine features user-friendly visual programming for rapid and accurate online programming, along with depaneling process detection capabilities.

Main Features

High-Quality Blades: Durable, sharp blades designed for frequent use without rapid dulling
Variable Speed Control: Adjustable cutting speed for different materials and complexities
Smooth Operation: Minimizes stress and damage to PCB components during separation
High Precision Cutting: Delivers clean, accurate separations with minimal burrs or rough edges

Technical Specifications

Model	RM-F328
Structure	Single Spindle, double platform
Effective Cutting Length	300×350mm
Cutting Types	Straight line, arc, circular
Moving Speed	X/Y axis: 1000mm/s, Z axis: 500mm/s
Dust Collection Method	Upper collection
Spindle Speed	40,000–60,000 rpm
Routing Spindle	Max 60,000 rpm
Cutting Speed	1–100mm/s adjustment
Cutting Accuracy	±0.03mm
Repeat Accuracy	±0.01mm
Programming	Colorful CCD
External Connection	USB
Router Kit	Milling cutter, φ0.8–φ3.0 left rotation, Shank Tungsten Steel
Power Supply	380V
Machine Power	2000W
Dust Collector Size	600×470×730mm
Dust Collector Power	2.2Kw, 380V
Dust Collector Air Pressure	4–6 KG/cm³
Security Door	Manual door
Error Alarm	Yes
Program Method	Self programming, camera controlled by keyboard and mouse

Machine Details

About HSTECH

Shenzhen HanSome Technology Co., Ltd (HSTECH) was established in 2012 by professional engineers with extensive experience in EMS companies. We specialize in PCB handling equipment, PCB depaneling machines, and SMT cleaning machines.

HSTECH maintains both a professional technical R&D team and an experienced marketing team that continuously researches market trends to develop products that meet evolving industry demands. Over the years, we have consistently innovated to create cost-efficient solutions that help customers reduce costs, minimize labor requirements, and improve production efficiency.

Our company philosophy centers on "High quality and Smart" manufacturing, guided by our "Quality-Oriented and Customer-Oriented" approach. We integrate smart technology to support smart factory initiatives and provide responsive after-sales service with a commitment to responsibility and continuous customer support.
