Dual Platform Automatic Soldering Robot with 2 Temp Controller For PCB Assembly

Brand Name:	HSTECH
Model Number:	HS-S331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Tabletop Soldering Machine

Other Name:

Automatic Soldering Robot

Working Platform:

Dual Platform

Soldering Tip:

Single Head, Dual Soldering Tips

Voltage:

AC220V/110V

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

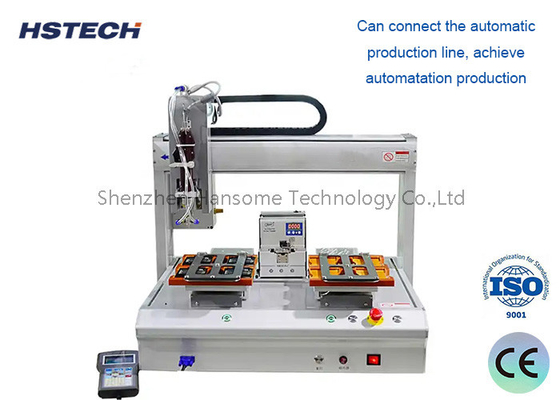

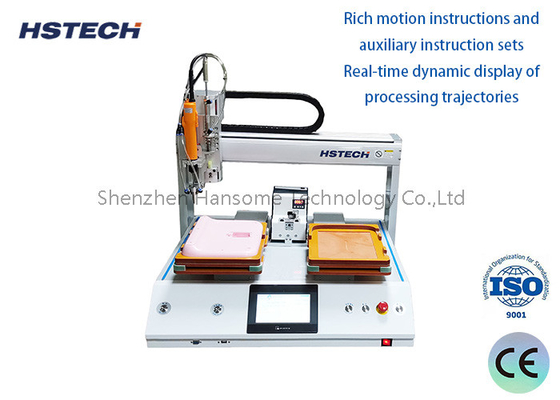

Dual Platform Automatic Soldering Robot with 2 Temp Controller For PCB Assembly

Introduction:

This automatic soldering machine with dual soldering table, single soldering head but with two soldering iron, so it has two temperature controller, but it without Rotation function. This model suitable for soldering regular PCB board or production, dual soldering iron working at the same time, great improve the soldering efficiency. The machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering.

Features:

Dual soldering table, single moving head but with dual soldering irons.
Each soldering iron has a individual temperature controller.
The soldering iron without nitrogen, very safety and environment protective.
The soldering head can be tilt by choosing a radian fixture,so the head can do themulti-directionally adjusted, which can protect the PCB and components from damage.
Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
With the handheld teaching pendant, the programming is simple and easy to learn.

Specification:

Model	HS-DS5331
Voltage	AC110V/220V,50/60Hz
X/Y/Z working range	500300300*100mm
R axis	360 degree
X/Y/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	48kg
Machine dimension	600585800mm
