High-Performance PCB Depaneling Equipment for LED Hard Strips

Name: High-Performance PCB Depaneling Equipment for LED Hard Strips
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-300
Price: 1,000.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blade Miving PCB Separator

Other Name:

V-cut PCB Cutter Machine

Warranty:

1 Year

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb

Condition:

New

Quality:

Durable,high Rank

Packaging Details:

Wooden package

Supply Ability:

100pcs per week

Product Description

High-Precision LED Hard Strip PCB Depaneling Equipment

Introduction

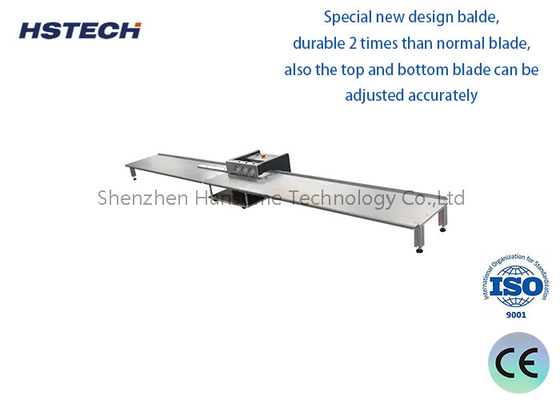

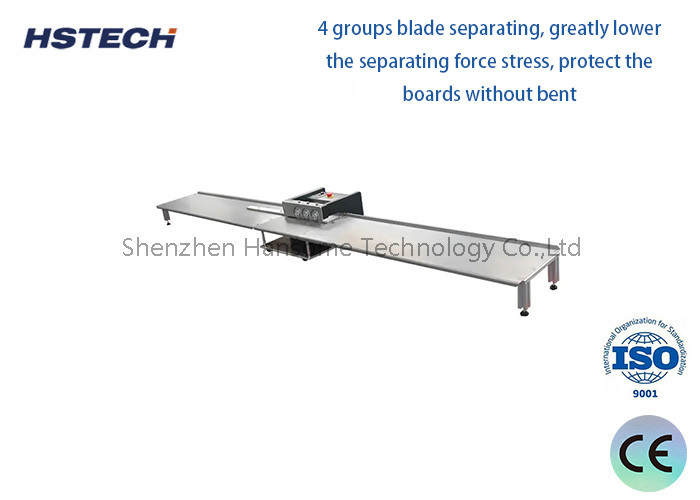

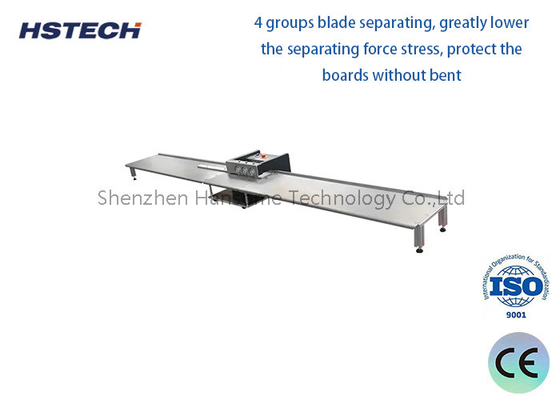

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3. The transmission height of the equipment can be adjusted by 900±50mm, and the track length is preferably 1000mm.
4. Comes with a laser chiller, equipped with a dust extraction system (automatic vacuum adsorption + laser dust
removal).
5. In line with the SMT anti-static standard, the product must be made of anti-static material within 30CM.
6. The safety door interlocking mechanism is configured, the safety door cannot be opened when the equipment is running, and the equipment cannot be operated after the door is opened. It is equipped with a leakage protector.

Specification

Model		HS-300
Voltage		110V/220V(optional)
Power		100W
Efficient cutting length		5-360mm
Blade size		Circular blade φ1253mm, Linear blade 36045*6mm
Blade material		Import high quality high speed steel tool
Separating speed		300mm/s
V-cut thickness		1/3 of the board
Separating width		Best 1-200mm
Machine size		620320450mm
Weight		50kg
