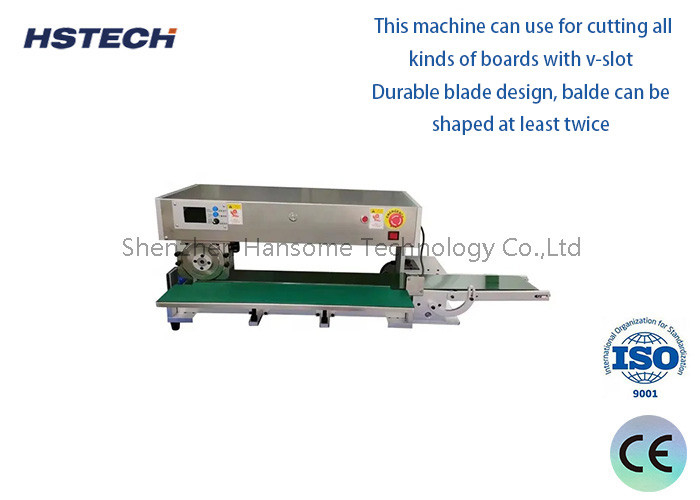

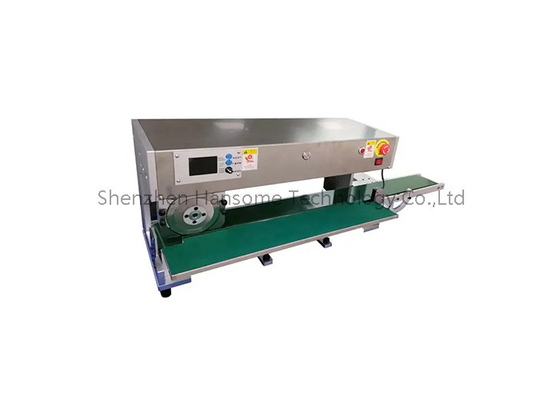

Adjustable Separating Width PCB Depaneling Equipment for V-Slot Boards

Name: Adjustable Separating Width PCB Depaneling Equipment for V-Slot Boards
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-300
Price: 1,000.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blade Miving PCB Separator

Other Name:

V-cut PCB Cutter Machine

Warranty:

1 Year

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb

Condition:

New

Quality:

Durable,high Rank

Packaging Details:

Wooden package

Supply Ability:

100pcs per week

Product Description

400mm PCB Separator Cutter w/Adjustable Separating Width

Introduction

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Features

1.Controlled by microcomputer programs, with precise positioning and strong stability. Cut a single board within 0-480MM length with one knife;

2.The cutting speed of the board can be adjusted to high or low, with speeds of 500mm/S and 300mm/S. If the cutting speed is fast, it can improve product quality without burrs or burrs;

3.Knife wheel travel: 0-480mm (tool length can be customized).

4.Fine adjustment of the upper and lower heights of the cutting wheel: 0-2mm to adapt to various PCB board thicknesses, solving the problem of V-CUT slot depth on PCB boards. Adjustable height of the control panel: 0-50mm;

5.The cutting stroke can be set to a stop point according to the length of the board, which is manually set.

Specification

Model		HS-300
Voltage		110V/220V(optional)
Power		100W
Efficient cutting length		5-360mm
Blade size		Circular blade φ1253mm, Linear blade 36045*6mm
Blade material		Import high quality high speed steel tool
Separating speed		300mm/s
V-cut thickness		1/3 of the board
Separating width		Best 1-200mm
Machine size		620320450mm
Weight		50kg
