400mm Length PCB Depaneling Equipment with Imported High-Speed Steel Blade

Name: 400mm Length PCB Depaneling Equipment with Imported High-Speed Steel Blade
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-300
Price: 1,000.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blade Miving PCB Separator

Other Name:

V-cut PCB Cutter Machine

Warranty:

1 Year

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb

Condition:

New

Quality:

Durable,high Rank

Packaging Details:

Wooden package

Supply Ability:

100pcs per week

Product Description

Adjustable 400mm Length PCB Separator Cutter Machine with Induction Function

Introduction

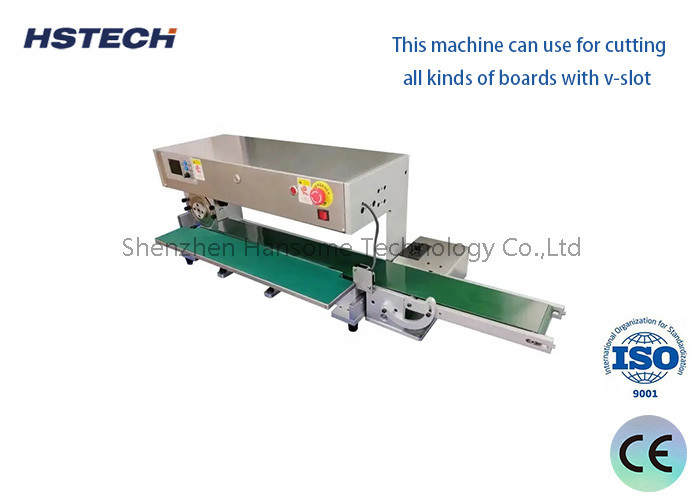

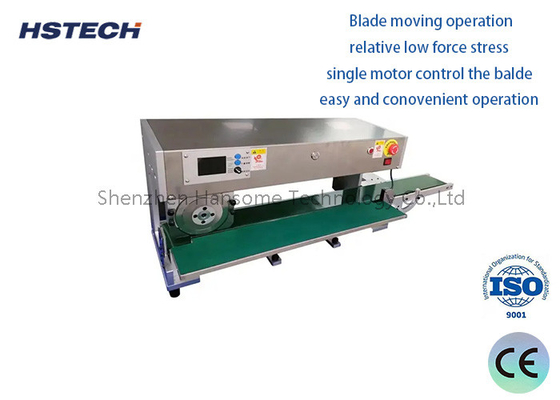

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Features

1. The tool material is imported SKH7 high-speed steel. Long service life, the blade can be reground when unfavorable.

2.The upper knife is installed to protect the blade, safe operation, to prevent accidental collision safety and security.

3.With infrared sensing device for safety protection, when human hands or foreign objects enter the working area, the knife will stop to avoid injuries caused by human negligence.

4.Installation of high-frequency eye protection lighting device to prevent work errors when operating in the shadow environment and enhance the efficiency of the operator.

5.Increase the conveyor belt line, split the board can automatically flow out, improve the efficiency of split boards.

Specification

Model		HS-300
Voltage		110V/220V(optional)
Power		100W
Efficient cutting length		5-360mm
Blade size		Circular blade φ1253mm, Linear blade 36045*6mm
Blade material		Import high quality high speed steel tool
Separating speed		300mm/s
V-cut thickness		1/3 of the board
Separating width		Best 1-200mm
Machine size		620320450mm
Weight		50kg
