3 Axis Desktop Moving System Automatic Tabletop PCBA Router Machine For Depaneling Straight Line

Name: 3 Axis Desktop Moving System Automatic Tabletop PCBA Router Machine For Depaneling Straight Line
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: RM-F500
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	RM-F500
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Tabletop PCBA Router Machine

Platform:

Single

Programming:

Manual

Repeat Accuracy:

±0.01

Efficient Cutting Length:

270*220mm

Machine Dimension:

420*520*860mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

20 sets per month

Product Description

3 Axis Desktop Moving System Automatic Tabletop PCBA Router Machine For Depaneling Straight Line
Machine introduction

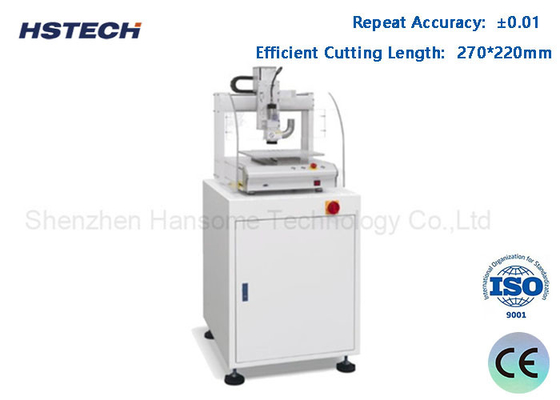

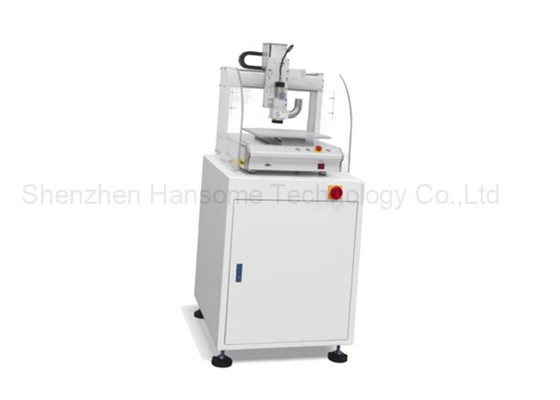

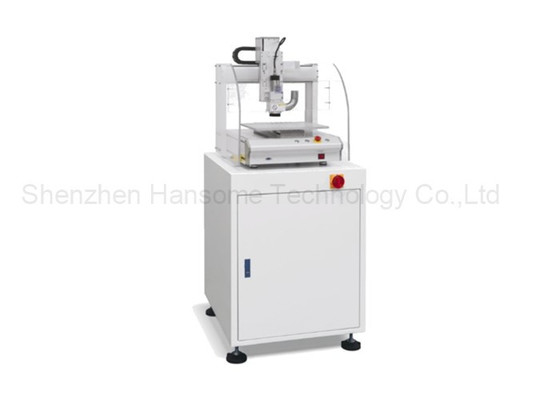

This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.

Main features

1, 3 Axis desktop moving system.

2, Teach pendant for manual programming.
3, High speed routing spindle, speed at 20000~40000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.

5, Upper side dust collector method, make sure the platform clean.
6, Suitable for depaneling straight line, arc, and circular connectted boards.
7, Enclosed operating room, security and low noise.

Sepcfication

Model	RM-F500
Structure	Single Spindle,single platform
Efficienty cutting length	270220mm(xY)
Cutting types	Straight line, arc, circular
Moving speed	X/Y/Z axis 30025090mm/s
Dust Collection method	Upper collection
Spindle	20000~40000rpm
Routing Spindle	Max40000rpm
Cutting speed	1-100mm/s adjustment
Cutting accuracy	±0.03mm
Repeat accuracy	±0.01mm
Programming	Teach box
External connect	USB
Router kit	milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply	220V/110V,50/60Hz
Board thickness	0.8-3mm
Dust collector size	600500500mm
Dust collector power	750W,1HP
