PCB Depaneling Router Machine
Created with Pixso.

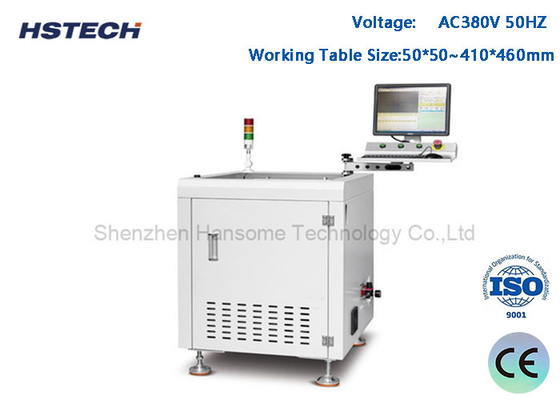

Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material

Name

Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material

Brand Name: HSTECH
Model Number: AR-7
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Mini Offline PCBA Router Machine
Material:
Sheet Metal
Fixture:
Needed
Power Supply:
AC380V, 50/60Hz
Communication:
SMEMA
Working Table Size:
50*50~410*460mm
PCBA Loading Method:
Manual
Dust Collector:
Bottom Collection
Packaging Details:
Wooden case, foam protection
Supply Ability:
50 sets per month
Product Description

Single / Double Work Platform Manual Feeding Offline Mini PCB Router Machine



Features

1, Offline automatic separating.

2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.

3, Customized fixtures.

4, PC and CCD visual system.

5, Programming with compensation and dust collection.

6, Available for max 410-510mm size PCBA.

7, Flexible for cutting two differenct type products.

8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).



Specification

Model AR-7 AR-7 mini
Power supply AC380V, 50/60Hz, 3KW
Working size 50x50~410x460mm(max) 50x50~260x310mm(max)
Loading mode Manual
Cutting spindel/speed 5000~60,000 rpm
PCB thickness 0.4-4mm
Separating speed 1-100mm/s
Cutting accuracy ±0.05mm
Fixing type Fixtures
Programing Visioin teaching, inline programing
Milling kit φ0.8~φ3.0 right side ratation, shank Tungsten steel
Dust collection method Bottom dust collection
Dust collector 3 phase, 380V, 1.2KW
Noise <75dB
Control system Industrial PC
Spindle brand Germany brand, Sycotec 4025
Servo motor A5 series
Motion control 4 axis motion control board
Lead screw C5 grinding screw lead
Linear guide P rank silence guide
Camera Germany brand Imaging 40W industril camera
Machine size 700*800*930 mm 500*650*930mm
Screen
17inch

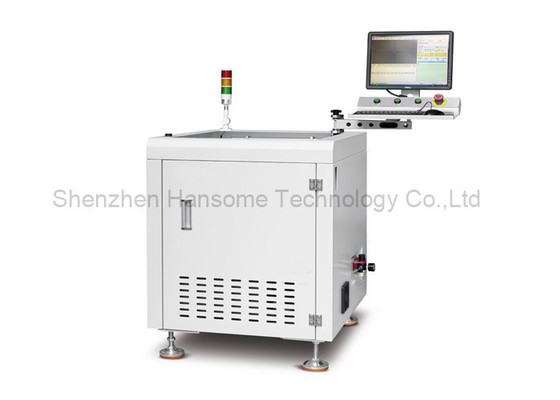

Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material 0

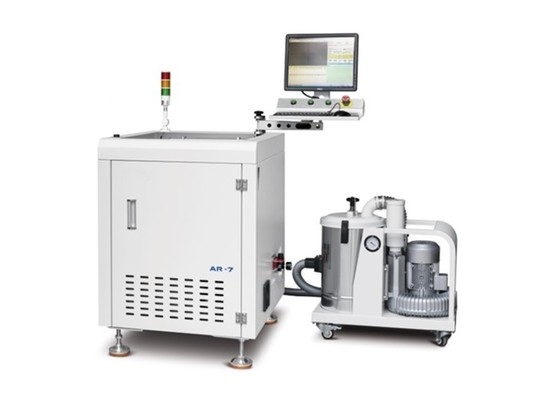

Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material 1



About Packaging

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 1

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 2

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 3
