Teach Pendant Programming 4 Axis Epoxy Glue Dispenser with ±0.02mm Repeat Accuracy and Vacuum Device Leak-Proof

Brand Name:	HSTECH
Model Number:	HS-D441
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4 Axis Glue Dispensing Machine

Driven System:

Stepper And Timing Belt

XYZ Working Range:

400*400*100mm

XYZ Speed:

Max 300mm/s

Repeat Accuracy:

±0.02mm

Warranty:

1 Year

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

Teach Pendant Programming Glue Dispensing Machine

±0.02mm Repeat Accuracy Epoxy Glue Dispenser

Vacuum Device Leak-Proof SMT Dispenser

Product Description

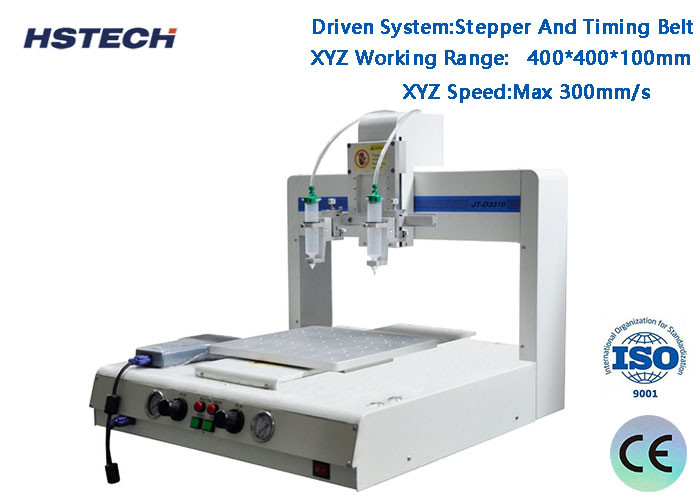

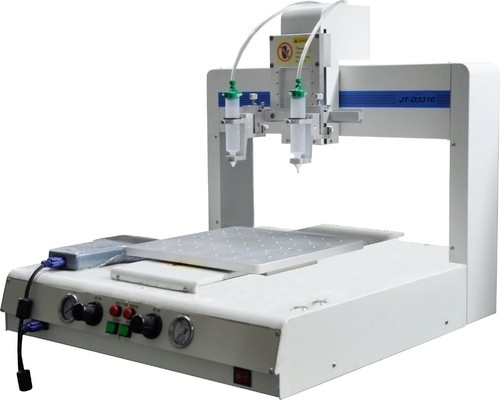

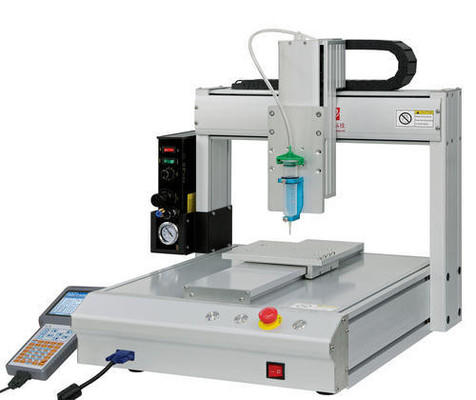

Teach Pendant Stepping Motor Epoxy Glue SMT Dispenser with Vacuum Device

This advanced epoxy glue dispensing system features teach pendant programming and vacuum leak-proof technology for precise SMT applications across various surfaces and patterns.

Machine Features

PC computer LCD screen operation with intuitive programming interface
Capable of drawing points, lines, surfaces, arcs, circles, and continuous irregular curves for 3D non-planar track paths
Fully parameterized control over glue size, speed, dispensing time, and stop time
Special dispensing controller ensures stable output, clean dispensing, and leak-free operation
Rapid dispensing on inner/outer walls, vertical surfaces, gaps, and spherical surfaces
Customizable configurations with fixtures, glue guns, controllers, and heating temperature control devices
Optional 1-4 head dispensing for simultaneous multi-gun operation and doubled work efficiency
Software includes region display, translation, and rotation operations
Advanced trapezoidal acceleration/deceleration, speed preview, and micro line interpolation technologies
High-speed, low-noise Japanese stepping motors for precise positioning, quick response, and long service life

Technical Specifications

Model	HS-D441
Power Supply	110V/220V 50-60Hz 350W
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s (based on 1:1 glue proportion)
Dispensing Precision	Glue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range	400×400×100mm (Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern Capabilities	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount ±1%, Ratio: ±1%
Programming	Teach Pendant
Control System	PLC
Leak-proof Function	Valve with Vacuum Device
Document Support	CAD, CorelDRAW
Weight	40kg
Dimensions (L×W×H)	616×685×645mm
