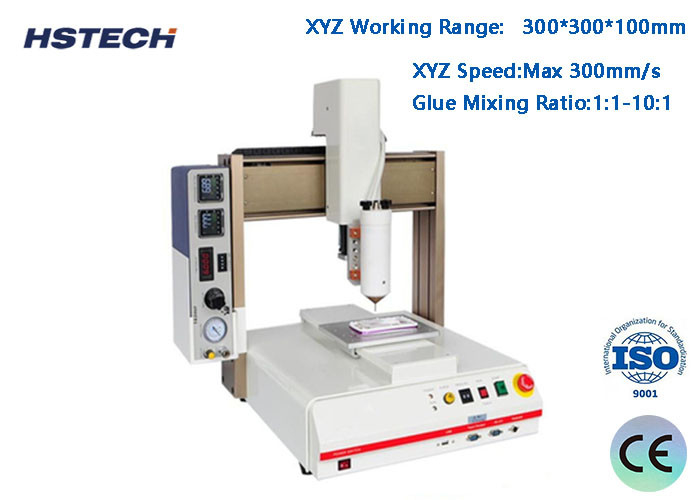

4 Axis AB Glue Dispensing Machine with 300300100mm Working Range ±0.02mm Repeat Accuracy and 1:1-10:1 Glue Mixing Ratio

Detail Information

Place of Origin:

China

Certification:

Product Name:

AB Glue Dispensing Machine

Other Name:

4 Axis Glue Dispensing Machine

XYZ Working Range:

300*300*100mm

XYZ Speed:

Max 300mm/s

Glue Mixing Ratio:

1:1-10:1

Dispensing Precision:

Glue Amount±1%, Glue Proportion±1%

Drive System:

Stepping Motor + Timing Belt

Repeat Accuracy:

±0.02mm

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

Product Description

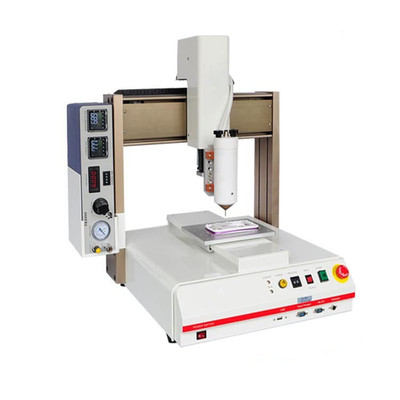

AB Glue Mixing Single Platform Fixture Needed Glue Dispensing Machine

Advanced automated glue dispensing system with precision mixing capabilities for industrial manufacturing applications.

Machine Features

PC computer LCD screen operation with intuitive programming interface
Advanced path programming for points, lines, surfaces, arcs, circles, and continuous irregular curves
Programmable glue volume, dispensing speed, timing, and stop parameters
Specialized dispensing controller ensures stable output and clean operation
High-speed dispensing on inner/outer walls, vertical surfaces, gaps, and spherical surfaces
Customizable configuration with fixtures, glue guns, controllers, and heating temperature control

Technical Specifications

Specification	Details
Glue Mixing Ratio	1:1-10:1 / Customizable
Dispensing Speed	10-150g/5s (based on 1:1 glue proportion)
Dispensing Precision	Glue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range	300×300×100mm (Z axis rotatable)
XYZ Speed	Maximum 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern Capabilities	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount ±1%, Ratio ±1%
Operation Method	Automatic
Programming	Teach Pendant
Control System	Board Card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimensions (L×W×H)	716×585×645mm
Power Supply	220V 50-60Hz 350W
